Q852 Fitting Fourier Interface Option Card (TN647)

24 March 2026 14:26 Updated

FITTING FOURIER ® OPTION

Important Note: These instructions provide guidance for installing the Fourier interface card in the Q852 console. This technical note is intended solely for use by factory‑approved technicians.

Preparations

Read the instructions carefully before starting, and leave yourself time to perform the work.

Ensure you have taken appropriate anti-static precautions

Avoid working in areas with synthetic floor coverings or carpet, especially polypropylene material, as opposed to natural materials such as solid wood or wool. Ideally work at a proper workbench with ESD safe features, such as a metal frame. Before work, try to discharge yourself into a mains earth fitment, water pipe etc.

This is important as parts of the equipment are static sensitive and even if any damage is not immediately obvious, so called “latent damage” can occur, where a device may be partially degraded yet continue to perform its intended function. However, the operating life of the device may be reduced dramatically, leading to premature failure.

If you are unsure about any part of the procedure, seek advice before proceeding.

You will need to have the following tools to hand:

Pozi screwdriver PZ1
5.5mm Socket driver for M3 Nuts
2mm Hexagonal driver (Allen Key)
Soft material (e.g. bubble wrap) for resting the engine

You should also have:

A Fourier transform.engine or another Dante audio device for post installation testing.

Before you start, shut down the console, switch it off and remove the power leads.

Procedure

Removing the Engine

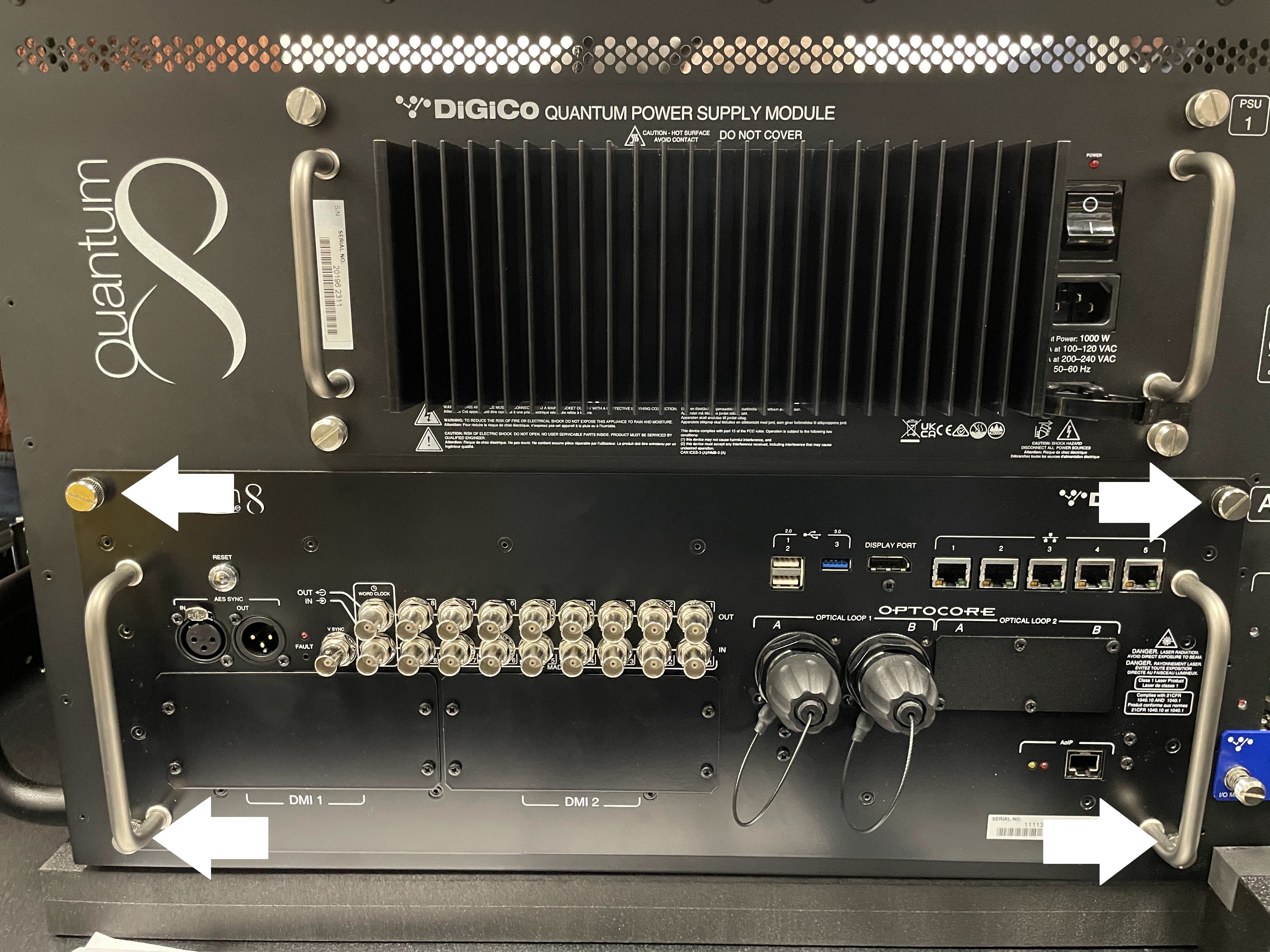

Unscrew the 4 x thumbscrews to release the engine and pull out the engine gently.

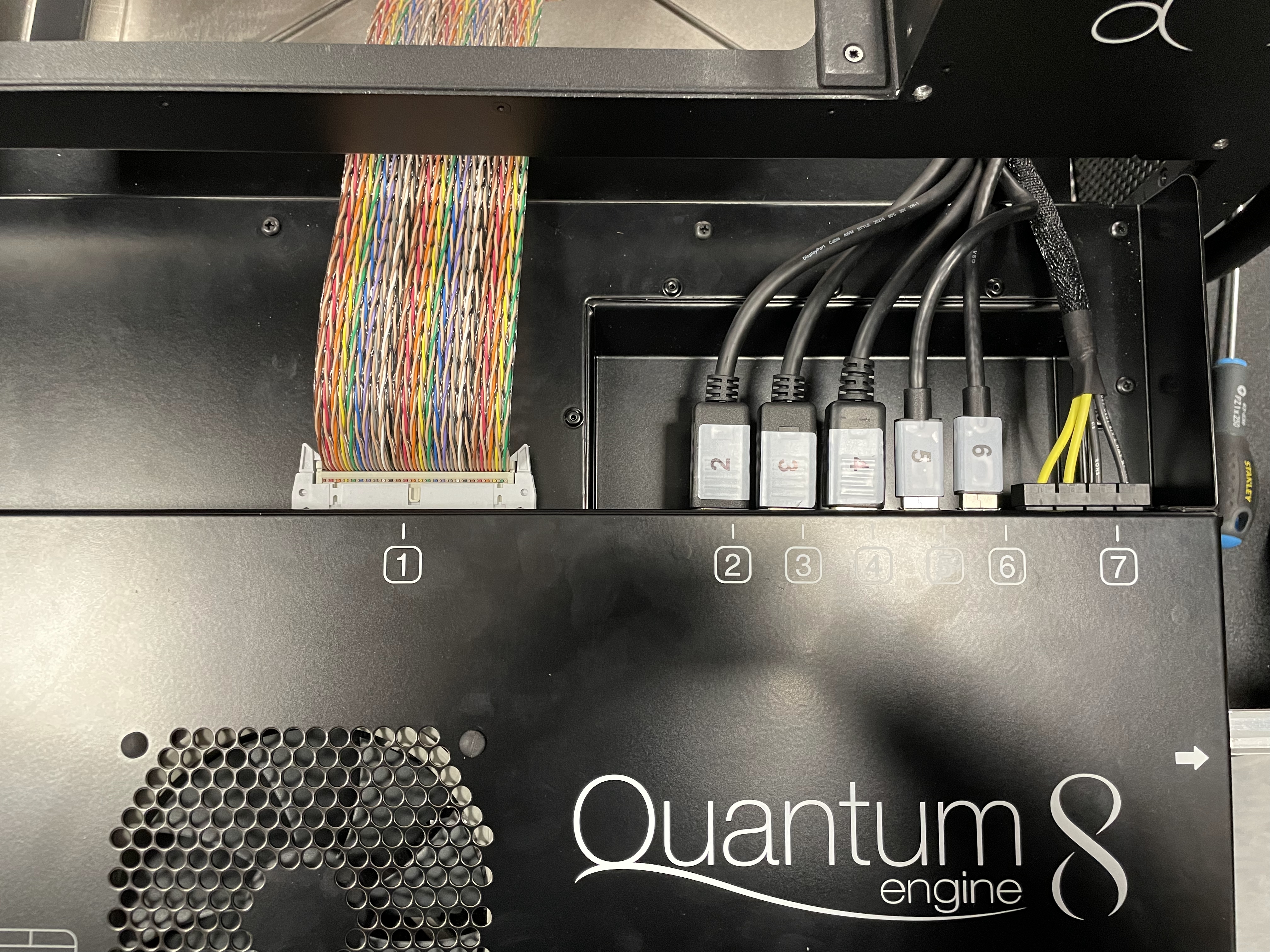

Unplug connections paying attention to the connector locks under the connectors.

q8 engine connections].jpg

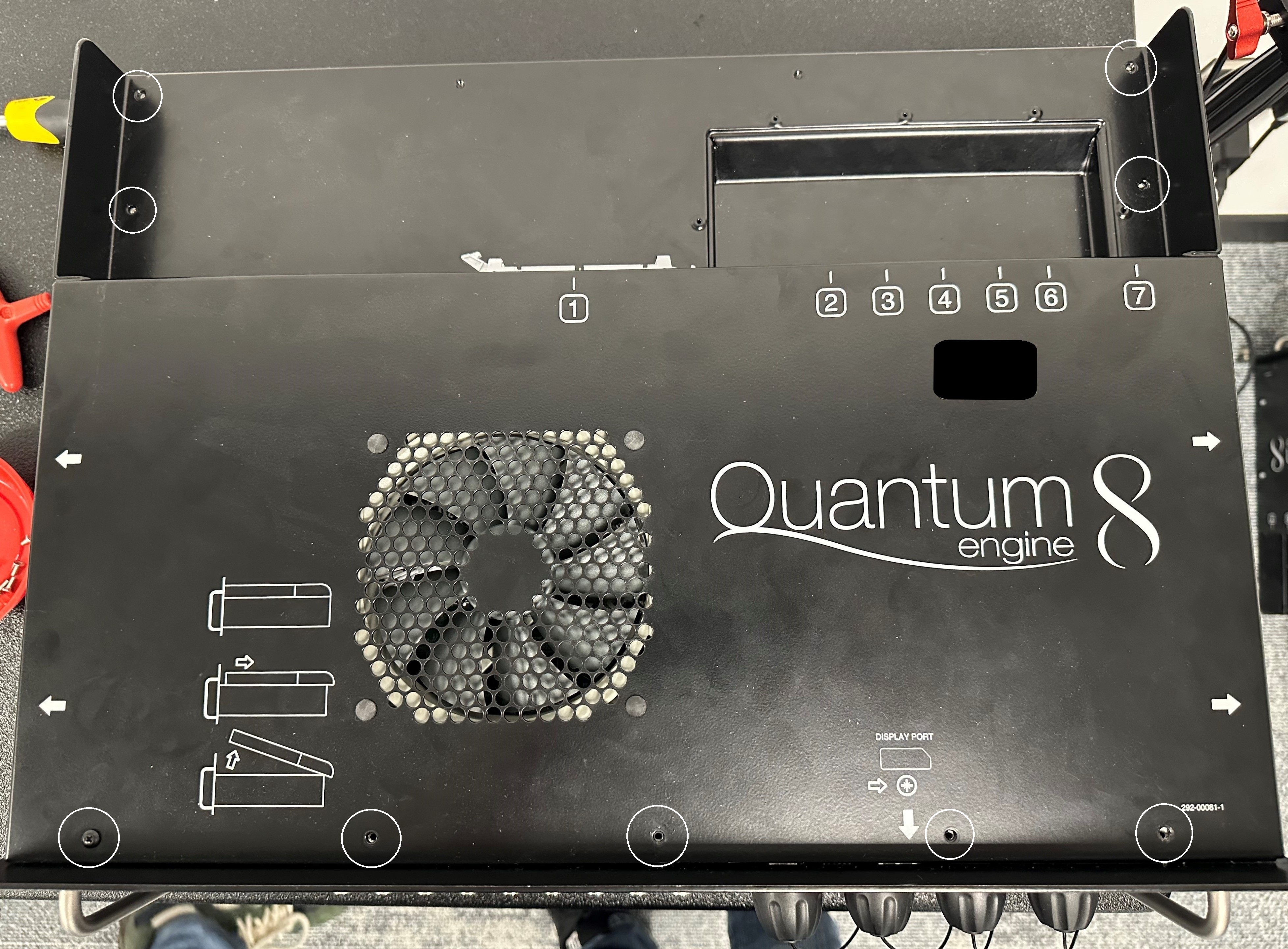

Place the engine on top of a clean and open area and remove all top panel screws (circled).

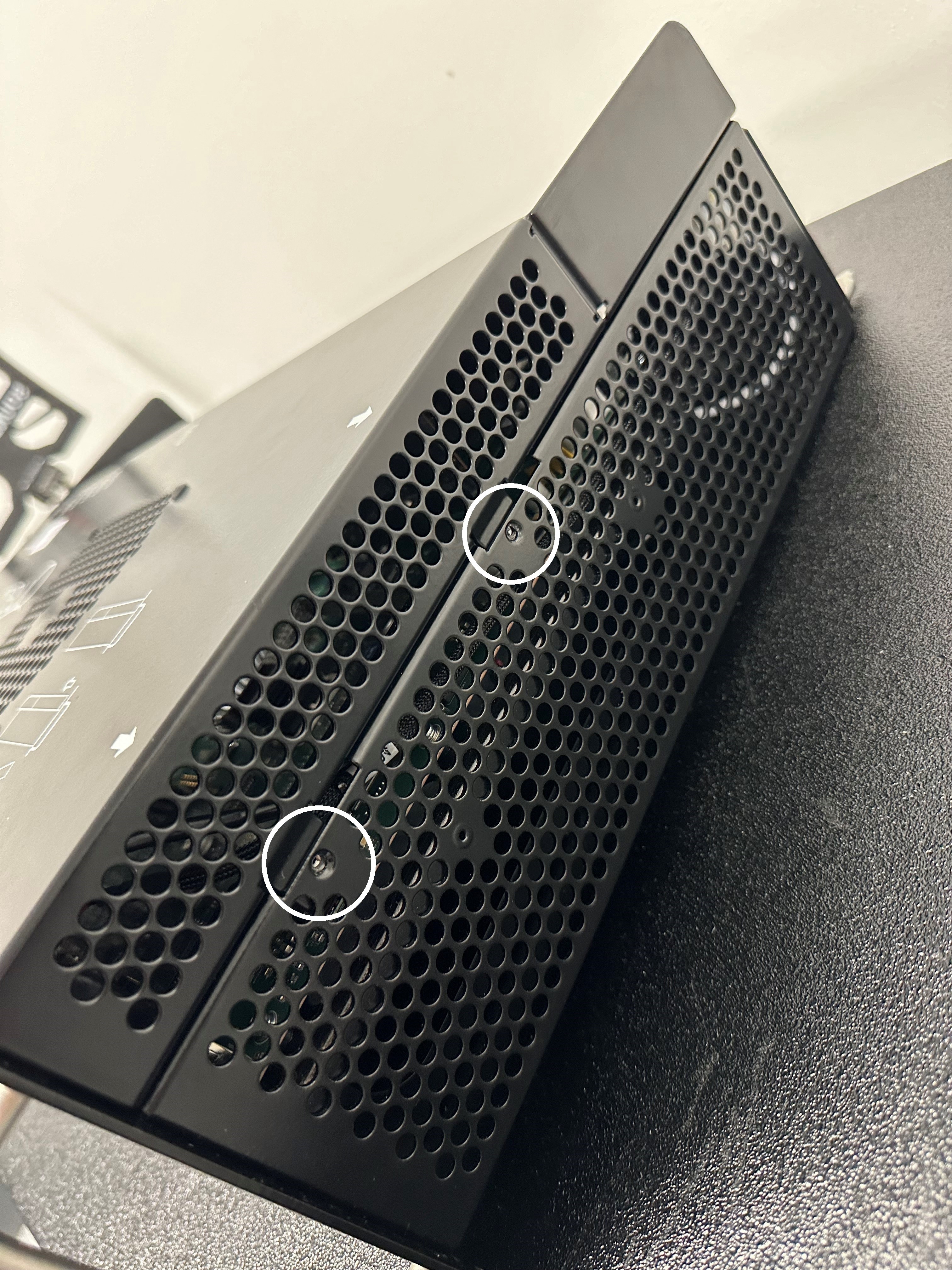

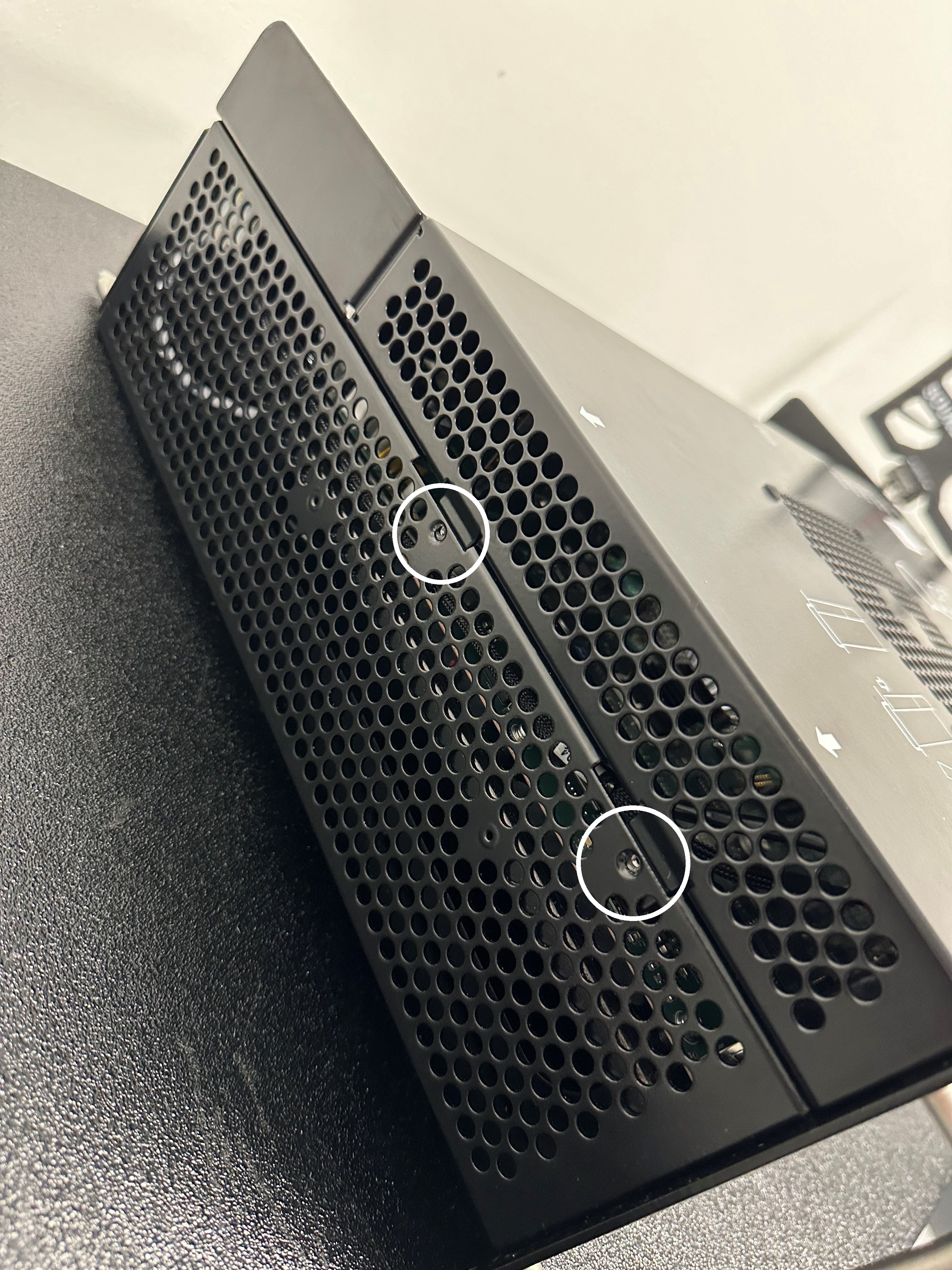

Remove both screws from each side of the engine (left & right).

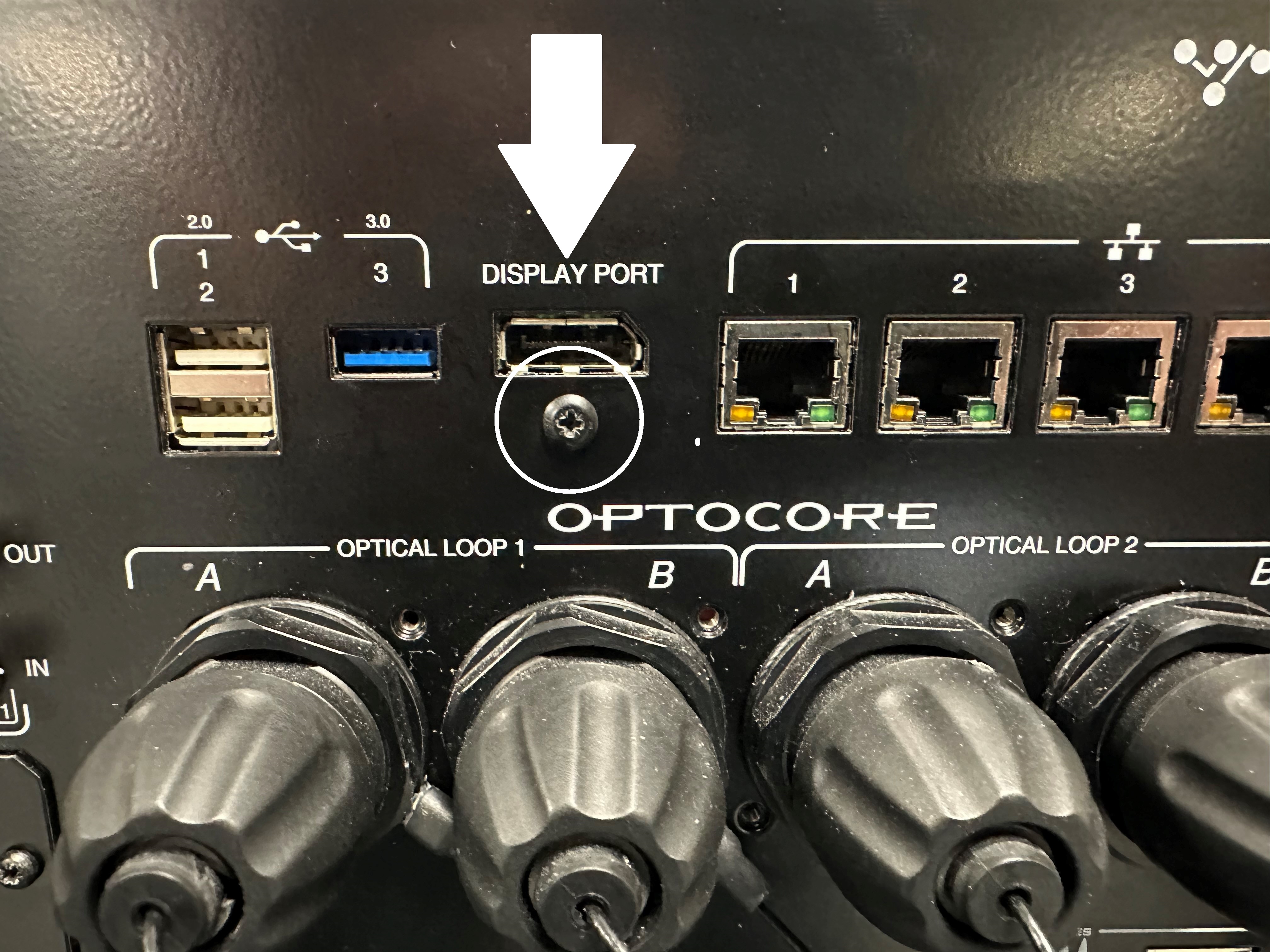

Note: In order to fully remove the top lid you also need to remove the screw on the front panel under the display port.

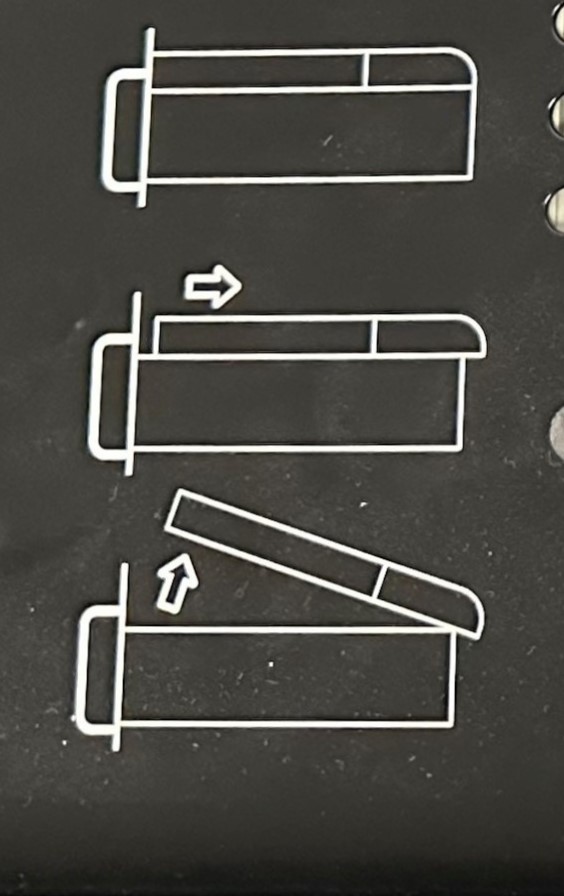

Now you can fully remove the top lid accordingly (please see below).


Lift the top cover carefully and rest it behind the engine without pulling or putting any tension to the internal cables to avoid any damage.

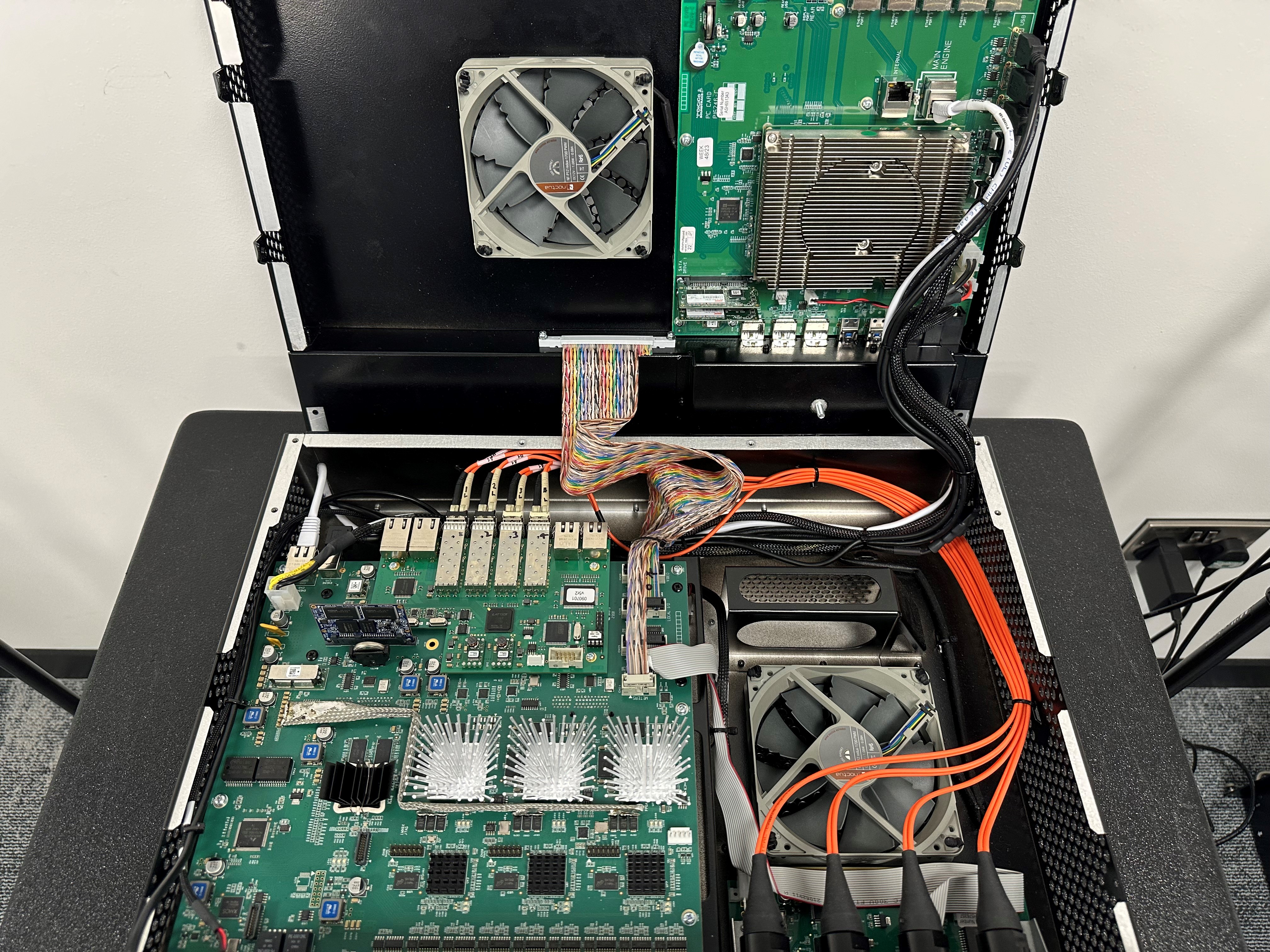

The interior is now accessible for required work.

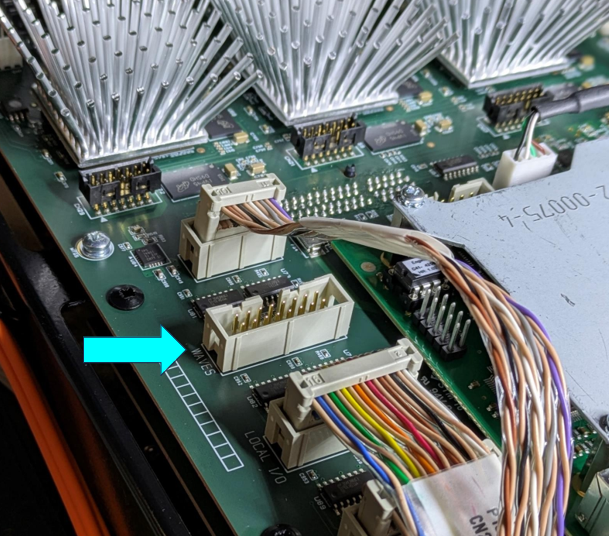

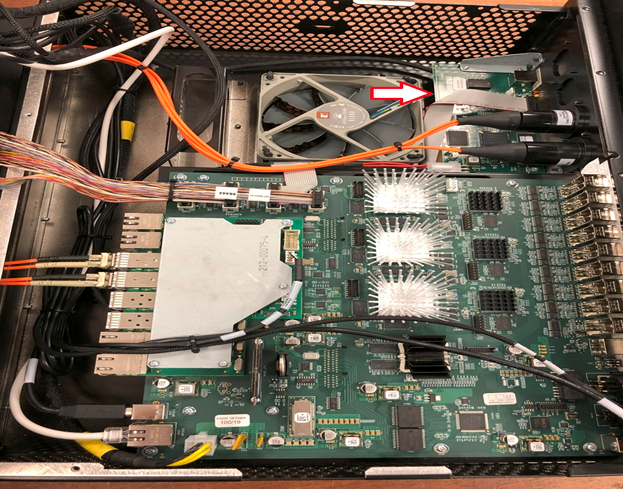

The image below shows the location where the Fourier module needs to be installed. It is located right below the optical connections, which also need to be removed.

*NOTE: To install the Fourier card, the Waves card needs to be removed*

Fourier Interface Card Installation

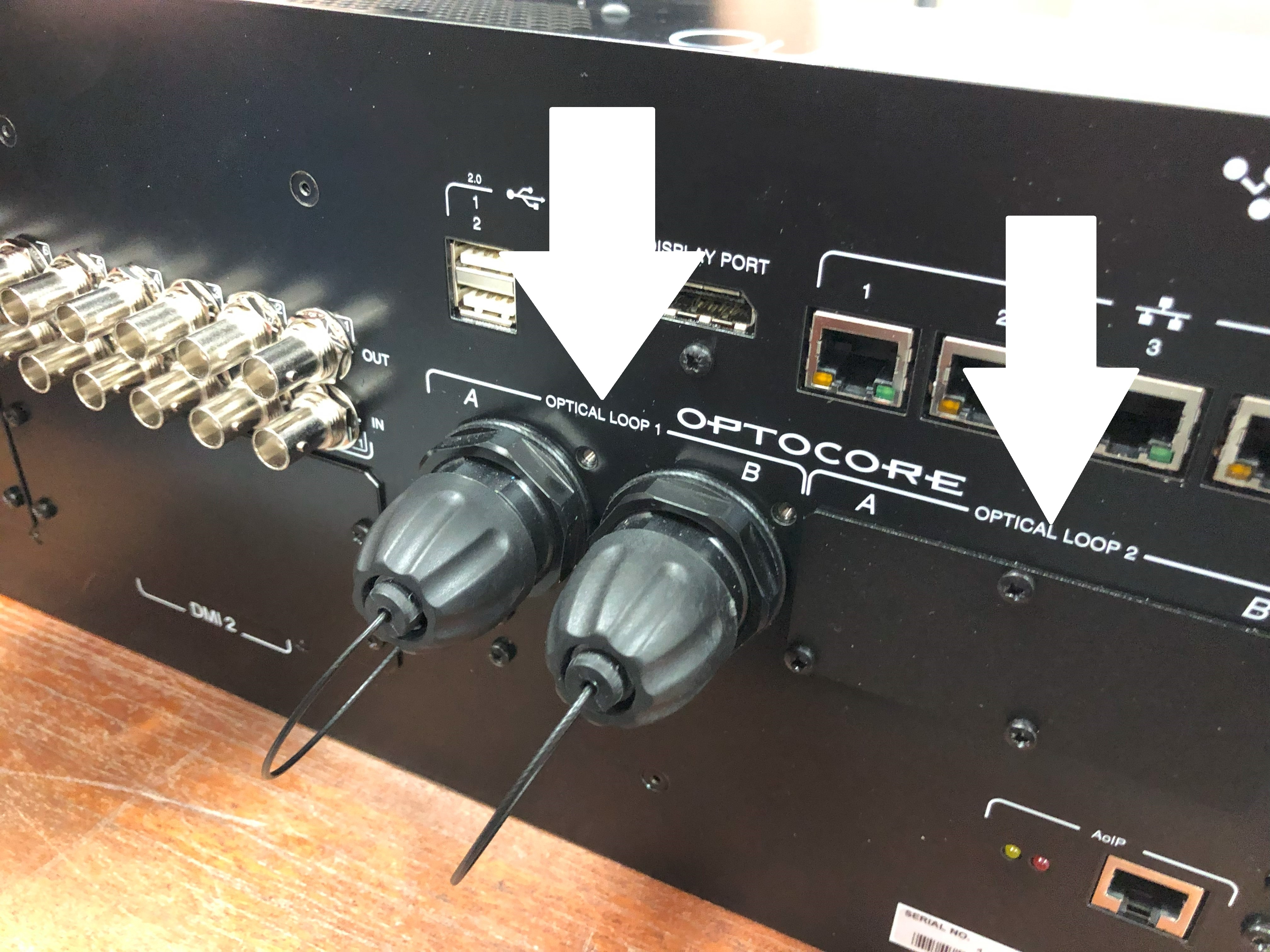

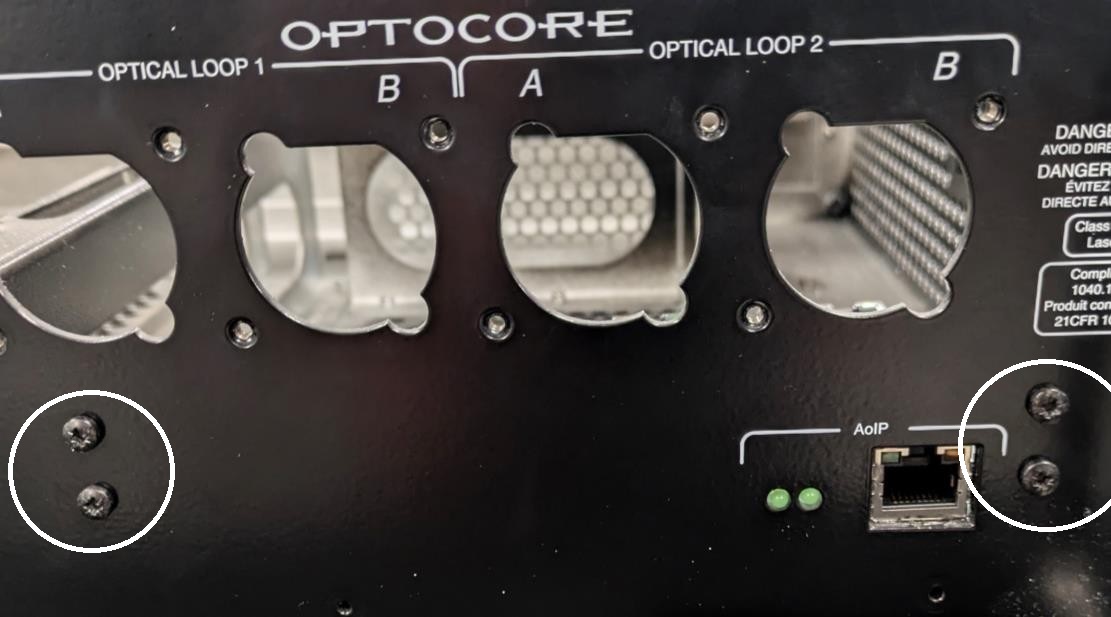

If optics are installed in loop 1, remove the optical connections and the blanking plate from the other loop so the new combined Optocore / Fourier plate can be installed.

If no optics are fitted, one blanking plate can be re-used after the installation of the new mounting plate to cover the openings for the connectors on loop 1.

Remove the blanking plate fitted and the optics connection.

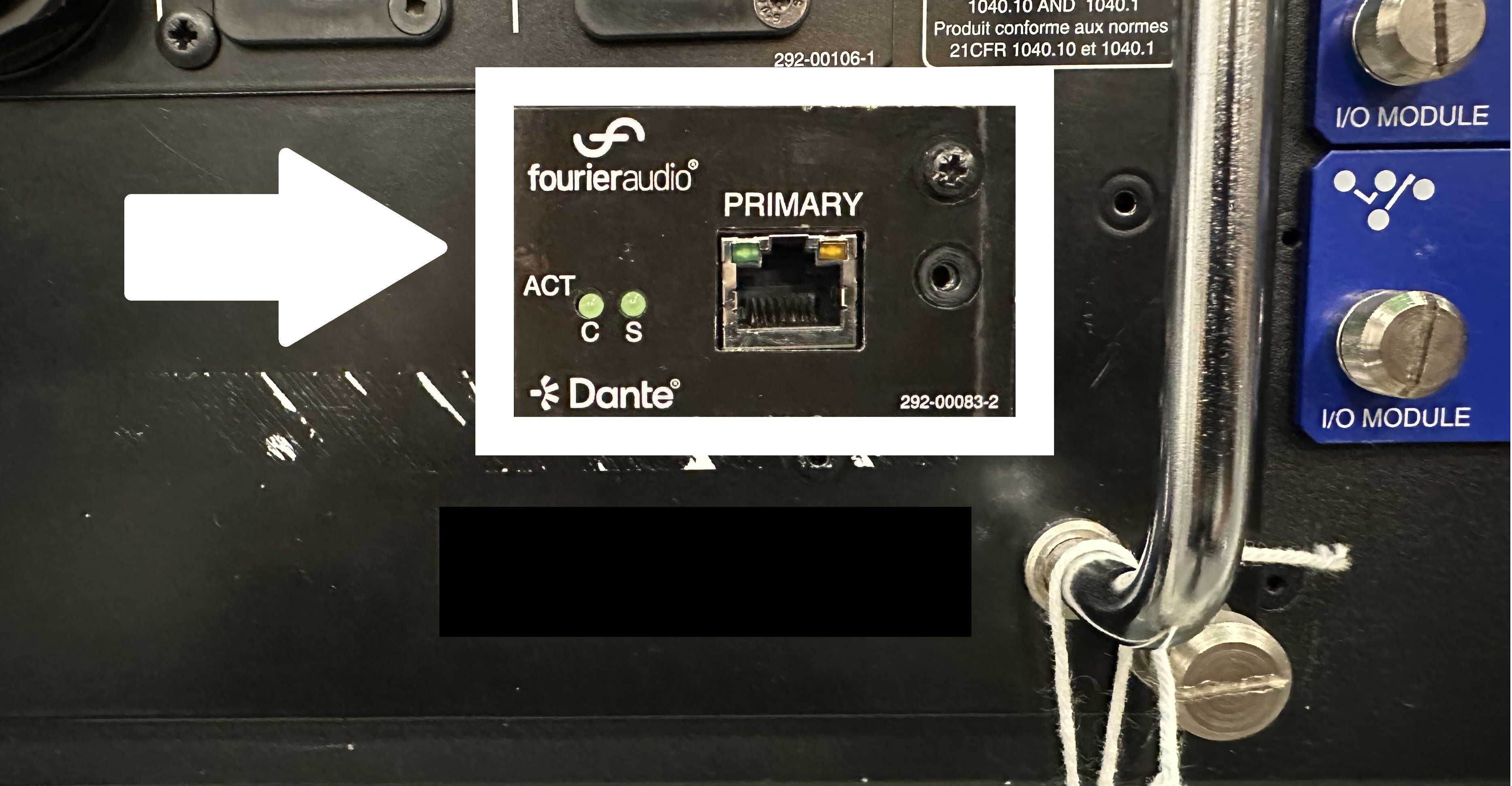

Before fitting the Fourier interface module, place the sticker provided with the kit (see picture below).

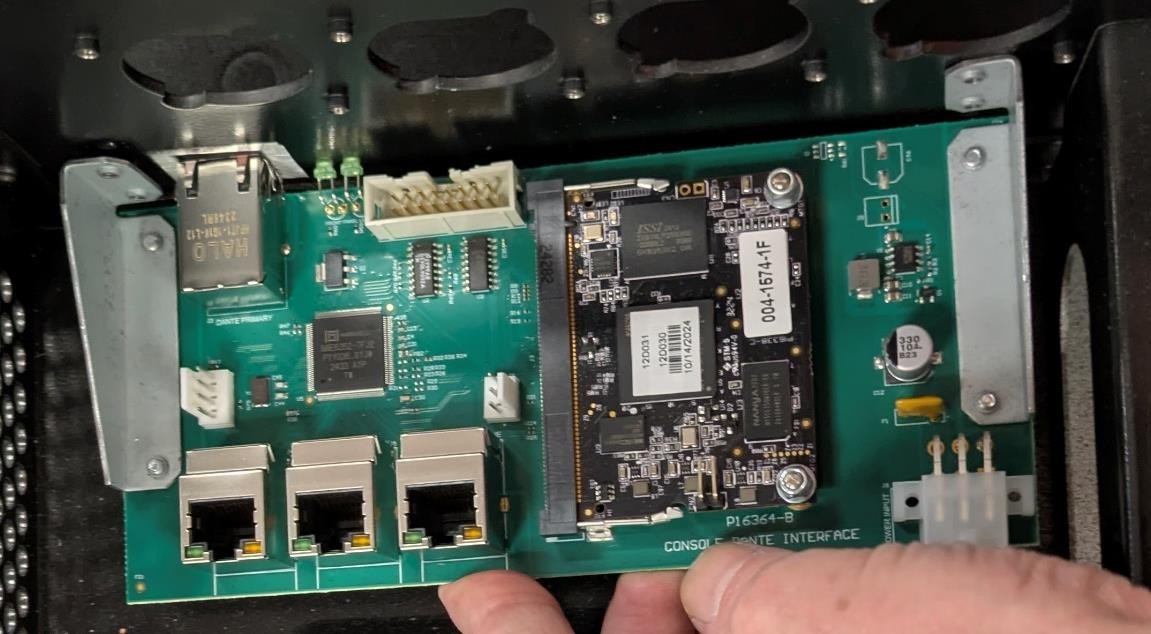

Fit the Fourier interface module under optic cut outs on Q852 engine chassis. Ensure the RJ45 socket and LEDs are pushed through the front panel of engine chassis.

Screw and secure the module from the front of the engine.

Fourier Card Mounting Plate Instructions

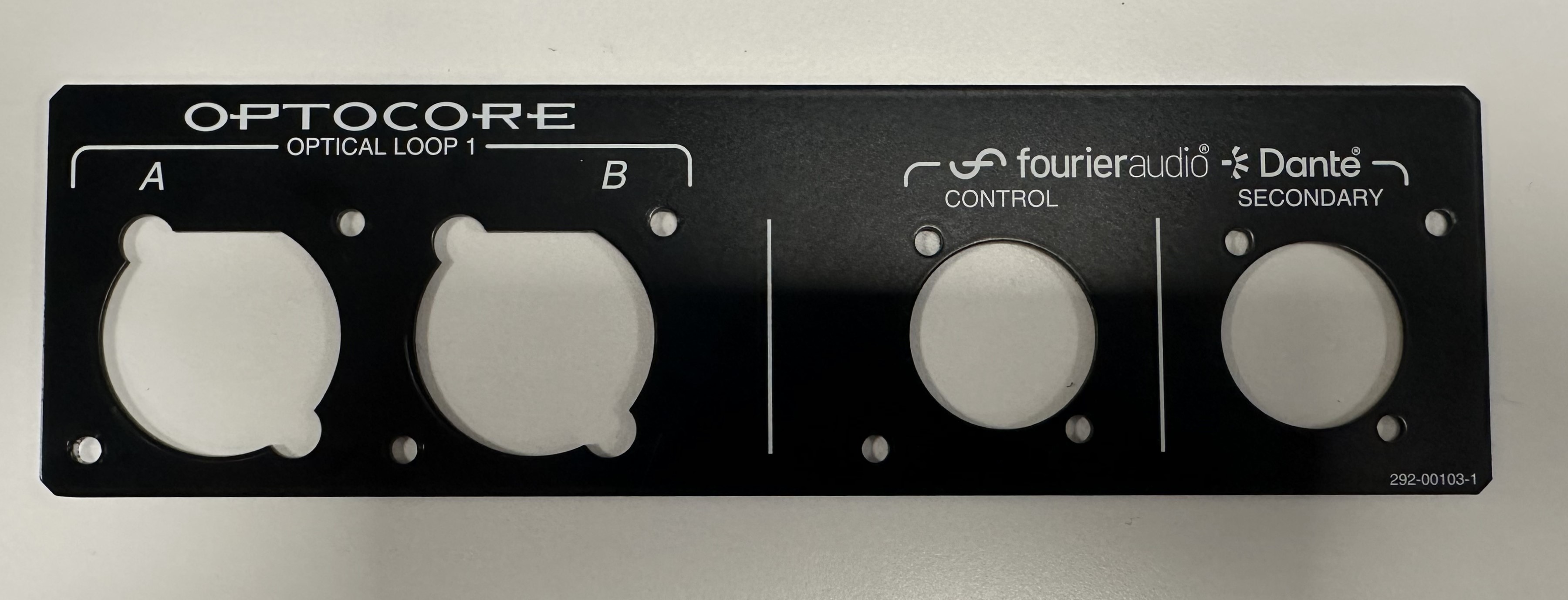

Optocore / Fourier Mounting plate

The kit comes with a mounting plate which needs to be installed on the Optical loops section on the rear of the console. For engines fitted with a dual Optocore loop, the installation of this mounting plate can be omitted in order to keep the 2^nd loop however, this prevents access to the Dante Secondary and Control ports.

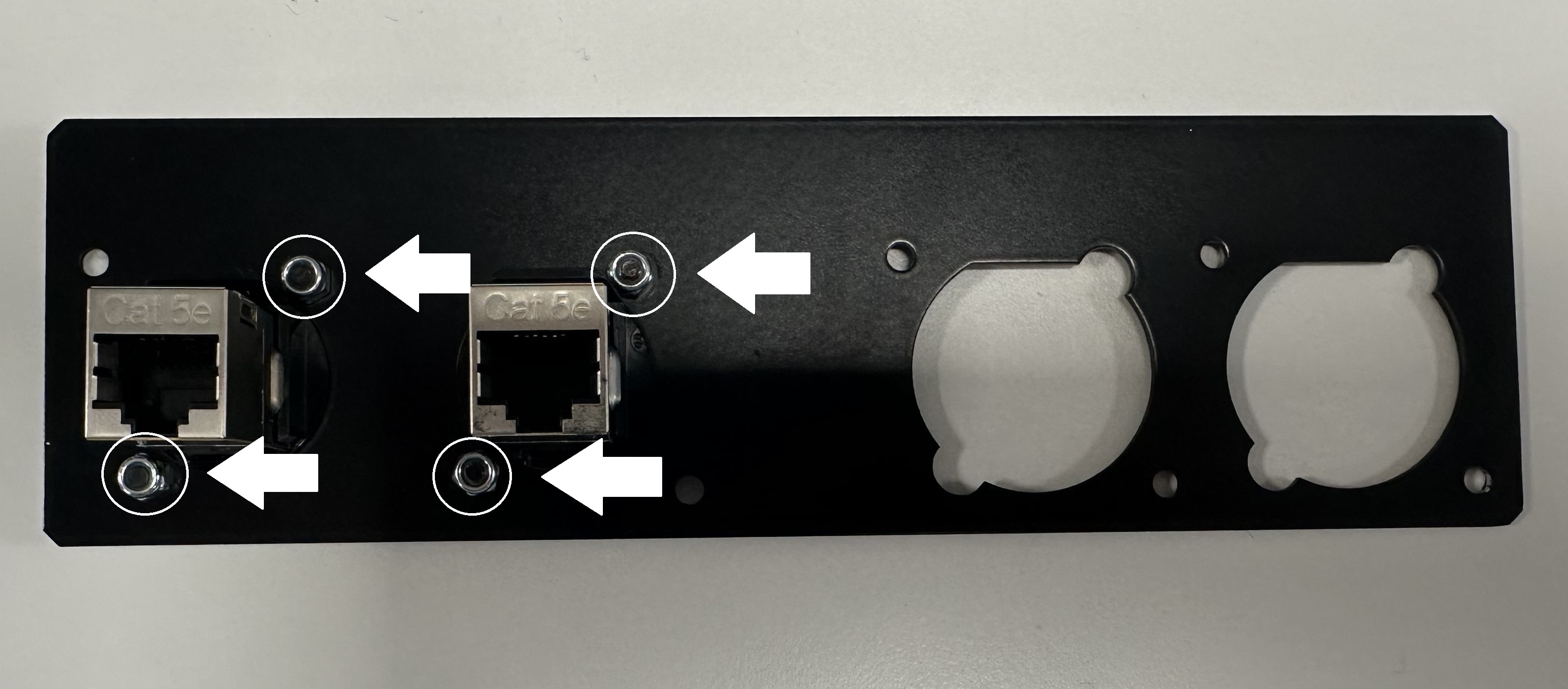

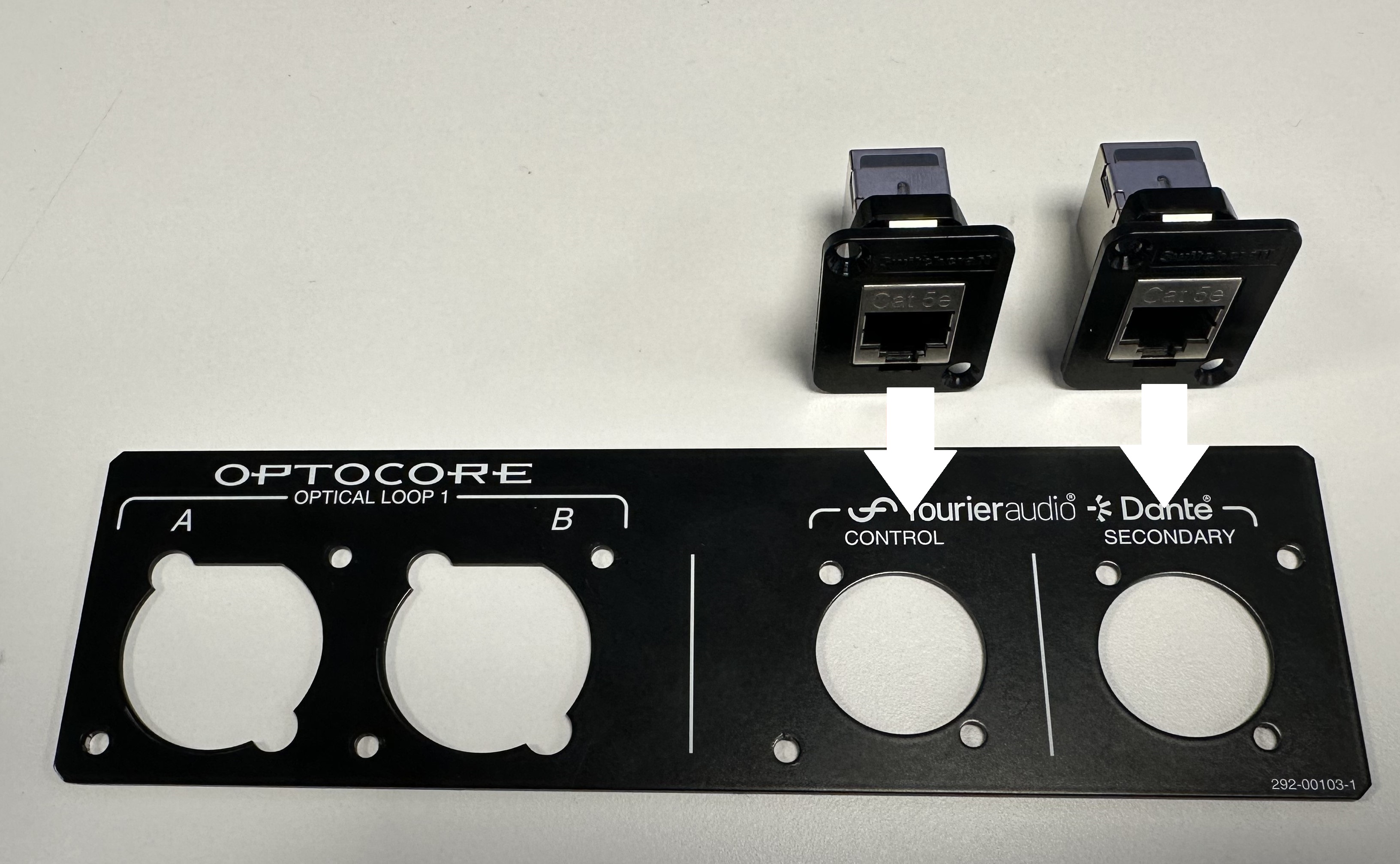

Fit the two Cat5 sockets into the plate with the M3 countersunk, hex socket screws and nuts provided.

Fourier Card Cabling

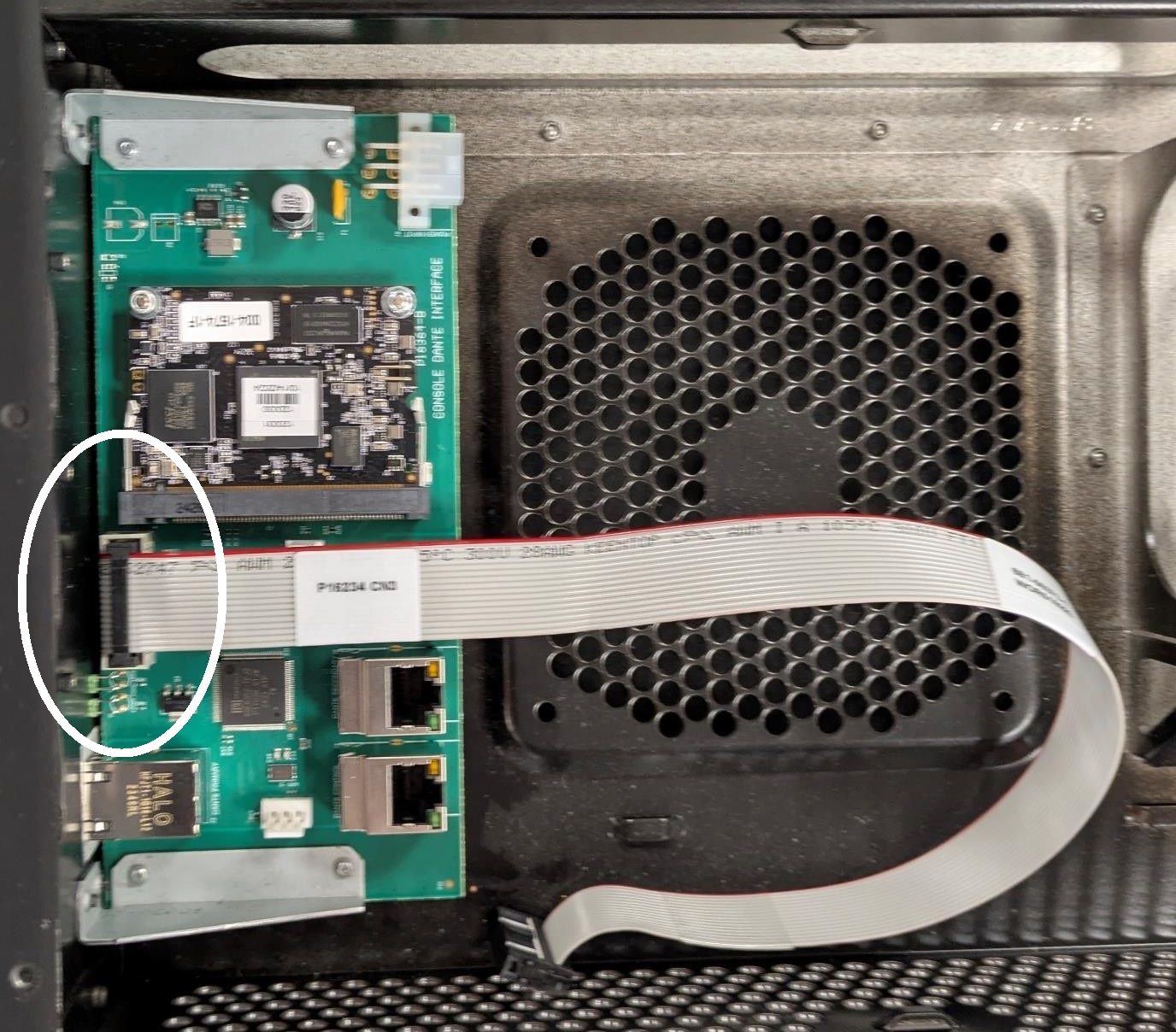

Fit the Ribbon Connector 681-00373 to the interface card.

Connect the other end of the ribbon connector to CN25 port on the Engine Board.

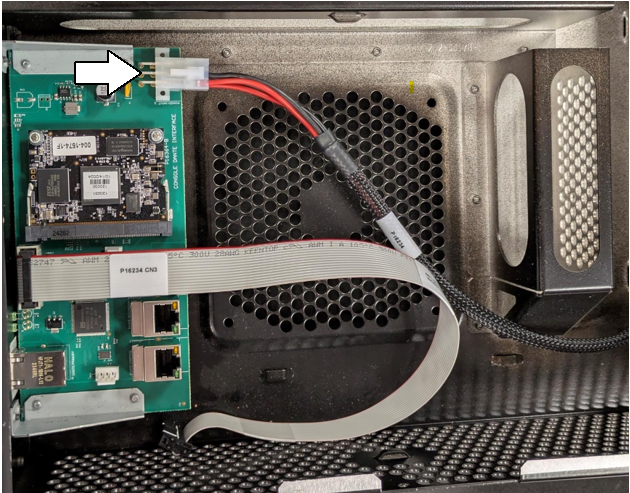

Fit the power cable as shown.

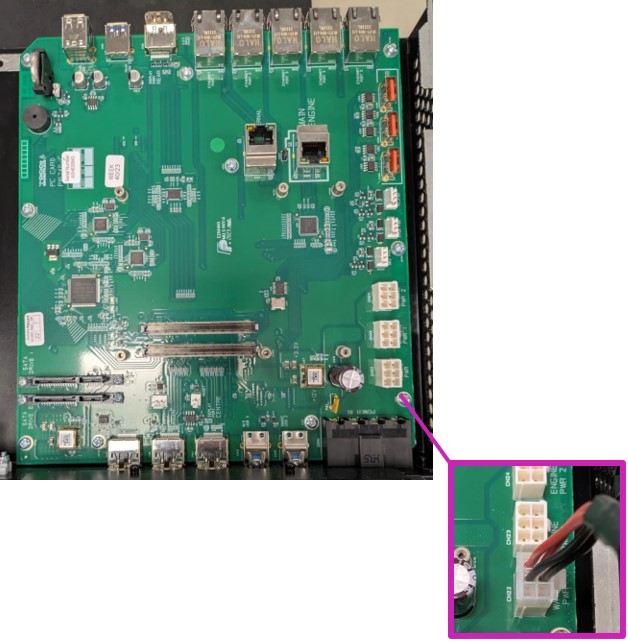

Connect the other end of the power cable to CN22 on the main PC board.

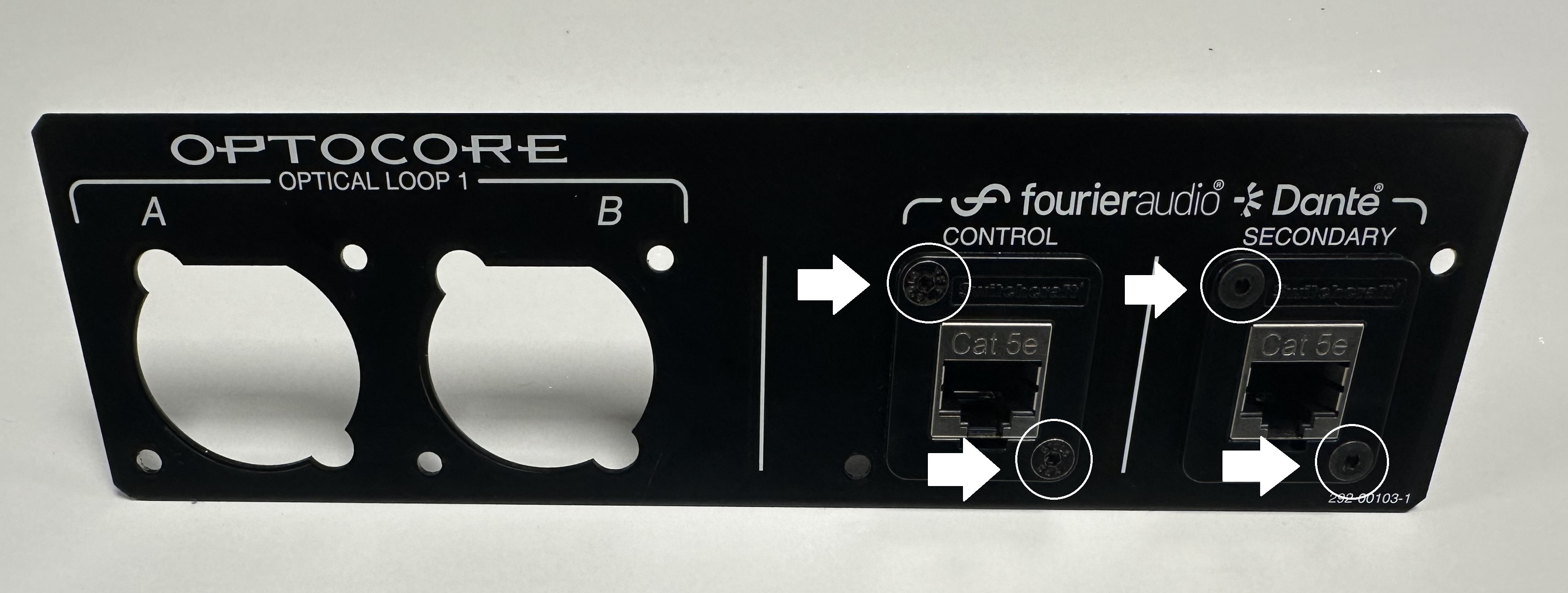

Now the Optocore / Fourier Mounting plate with the Cat5 sockets previously assembled as per instructions on page 7 can be installed.

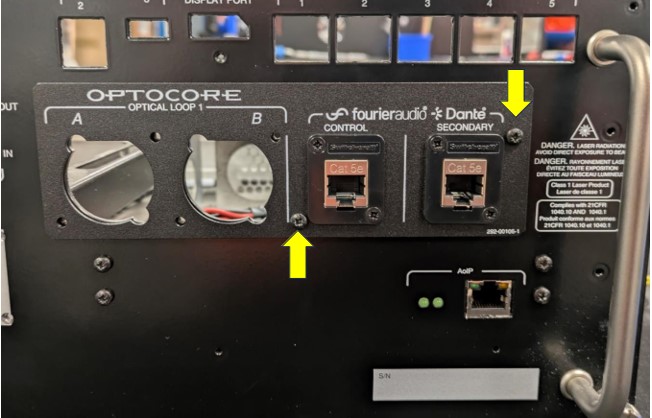

Secure the Adaptor plate to optic cut outs on Q8 Engine Chassis with 2 off screws.

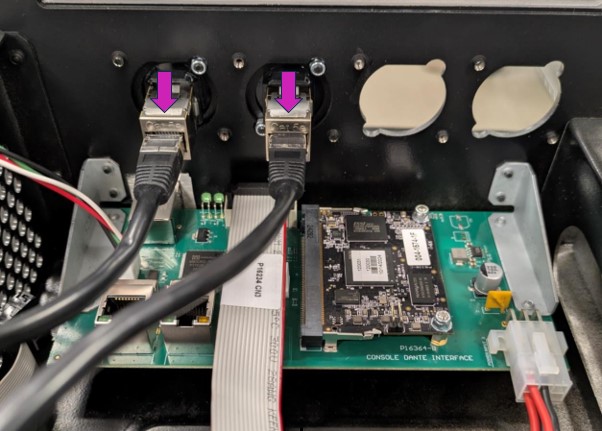

Fit the Cat5 cables to the each of the connectors.

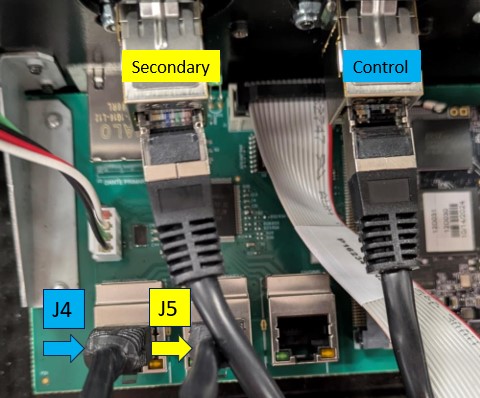

*NOTE: Make sure to connect the ethernet cable end to end accordingly*

CONTROL <-> CONTROL

SECONDARY <-> SECONDARY

J4 for control port and J5 for secondary.

The option card hardware installation is now complete.

Reassembling the mixer

Re-fit the optics connections from loop 1 previously removed for the installation, make sure everything is connected correctly and proceed to place the cover of the engine, install the engine back into the console and connect all corresponding cables.

Test the mixer functions

On completion of the work, connect the mixer to power and carry out a functional test to confirm that the display and controls operate correctly before refitting the panels.

After the test, shut down the mixer and switch off the power.

Secure the panel with screws.

Software Setup Notes

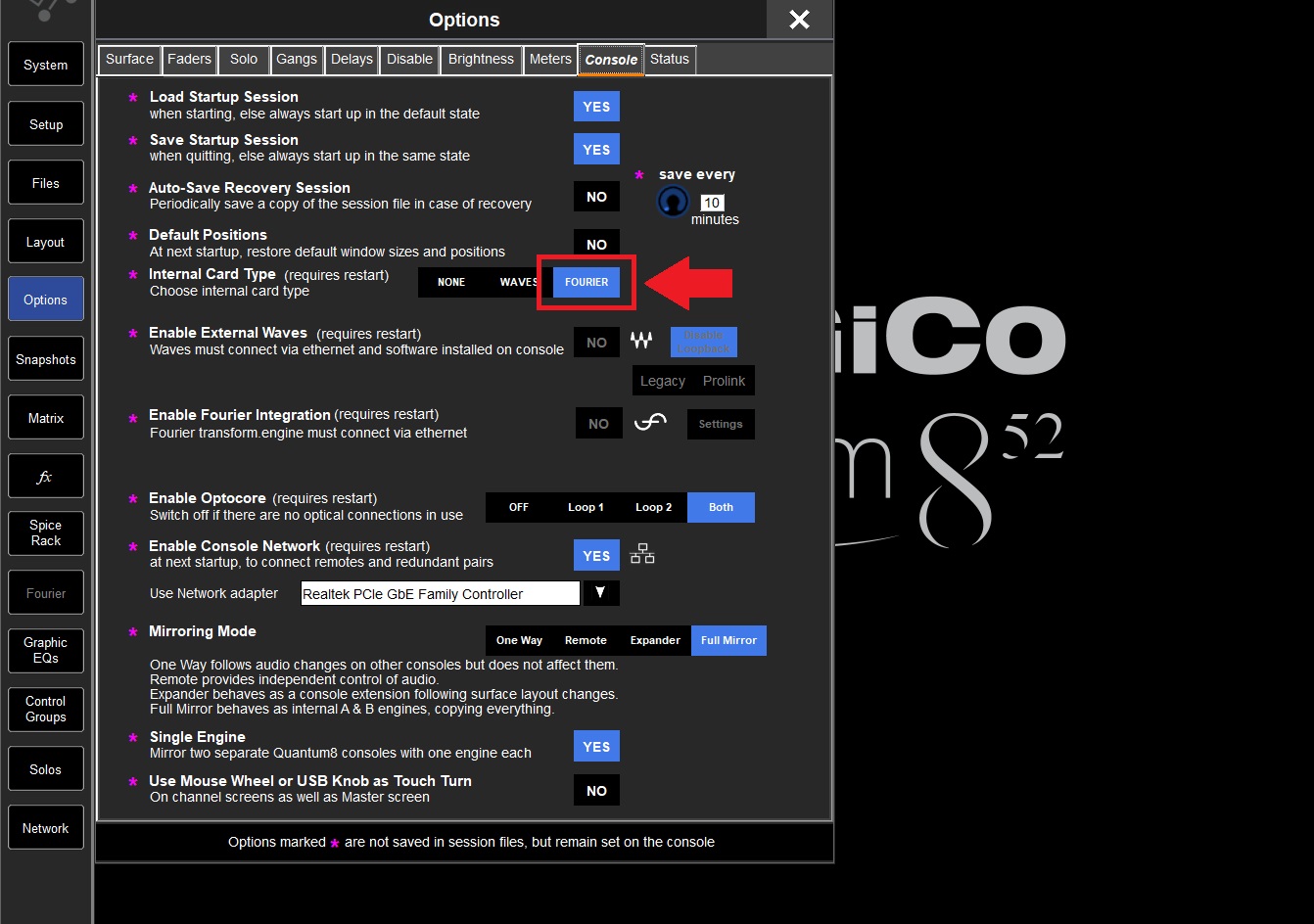

To enable Fourier Card:

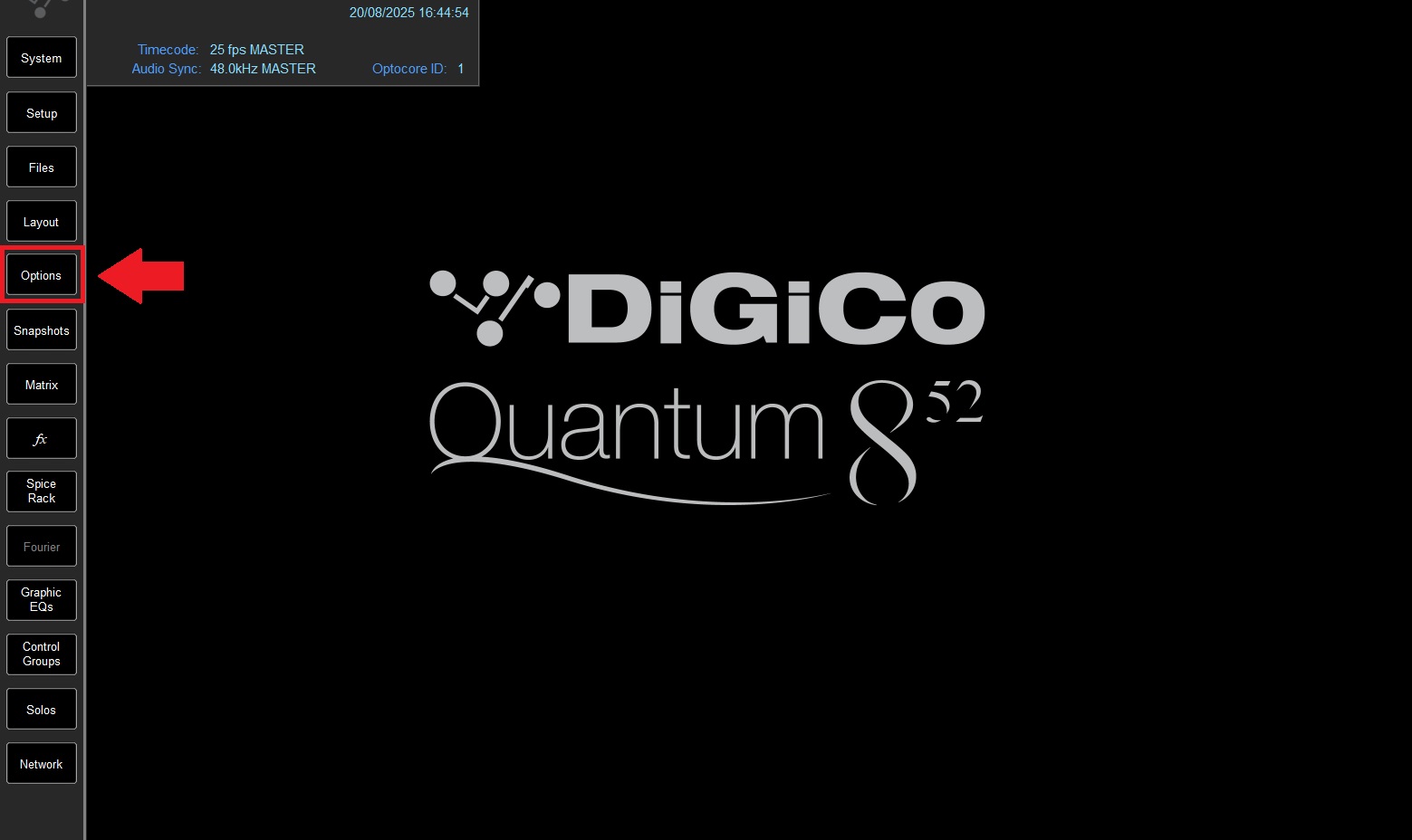

1. On main screen click on ‘Options’.

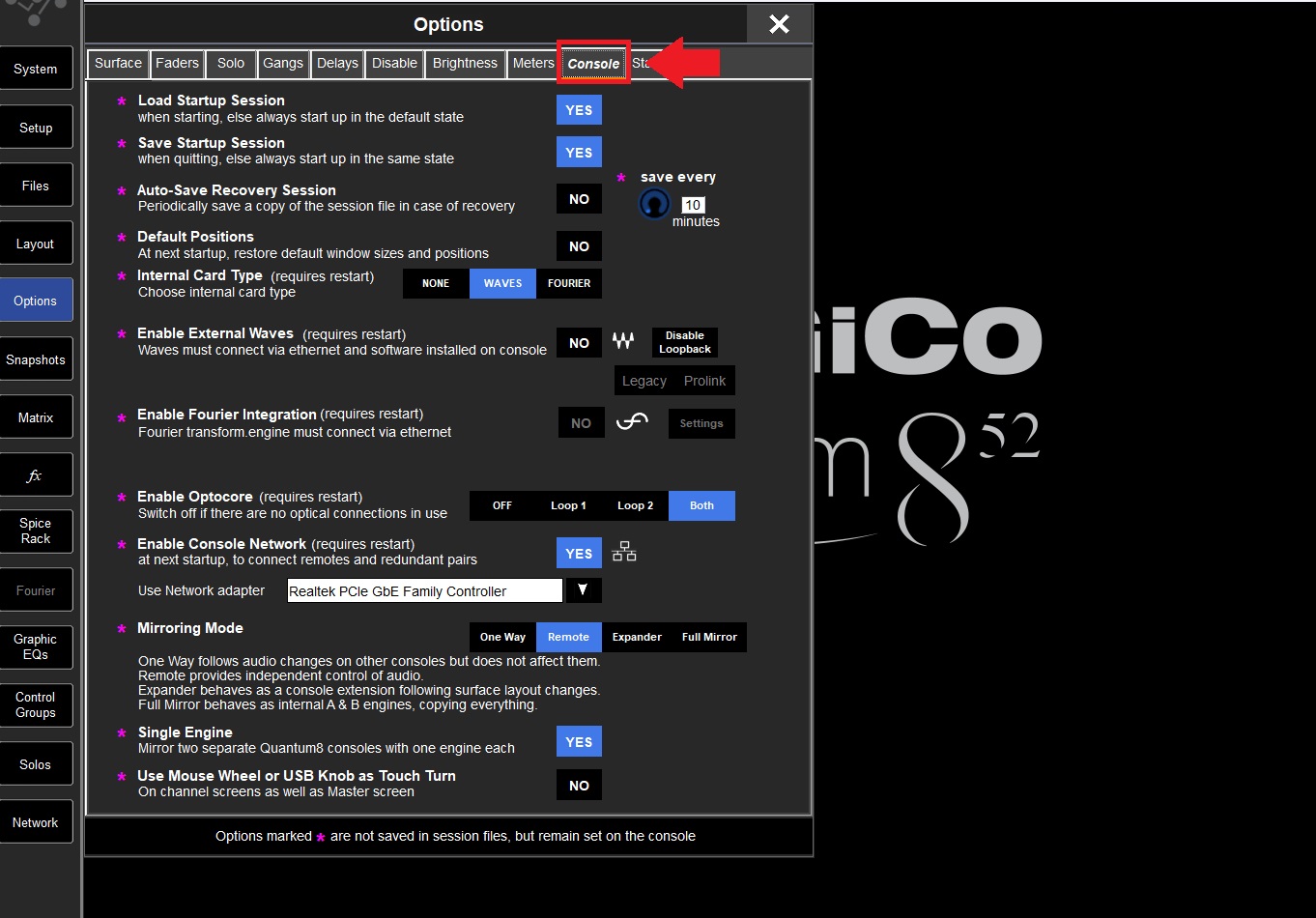

2. Once Options window is open click and select on ‘Console’.

3. Click on ‘Fourier’ to enable.

4. Close and restart the console.

5. On the next boot, verify the Fourier port is enabled on the Audio I/O.

Ensure the card is set to the same sample rate as the console in Dante Controller. This cannot be controlled by the Console application software.

Fourier Interface Card Specifications

• The Fourier Interface Card provides 64 channels in and 64 channels out at 48kHz or 96kHz to the Dante network.

• The card does not feature Sample Rate Conversion so make sure that the console sample rate and the Dante sample rate of the card (set in Dante controller) match or it could end up with distortion/clicking/no audio.

• The Fourier Interface card cannot be used to control socket parameters (phantom power and gain) of DQ Racks or A168D/A164D Racks.

• When fitted to Quantum consoles, the user can Enable Sync to External in Dante controller for the Fourier Interface Card to get it to clock to the console. Alternatively, the console can be set to clock from the Fourier interface card in Setup\Audio Sync. This will result in the console following the Dante network for audio clock.

Associated Documentation Downloads

TN647 Q852 Fitting Fourier Interface Card.pdf

2 MB
