DMI Dante 64@96 (Zynq variant) Firmware 4.2.8

Download

Dante Firmware 4.2.8



From March 2023 onwards the DMI Dante 64@96 cards are fitted with an IP Zynq HC solution as their Dante module. The module PCB has been made from a black material, so it is visually identifiable when assembled. (see attached TN580 Rev2 for further details).



Firmware 4.2.8 for DMI Dante 64@96 cards (Zynq variant) provides an update to the Audinate firmware and adds control port filtering which was not active in the previous version.



Ensure that your card is equipped with the aforementioned Zynq module. Consult TN580 Rev2 if in doubt.



DMI-Dante64@96 (with Zynq module) update procedure

    1. Connect your computer to the Dante Network and ensure the computer’s IP and Subnet are in the same range as the Dante devices.
    2. Look in Dante Controller and locate the IP address of the DMI card.
    3. Place the Firmware update file in a known location on your computer.
    4. Open a Web Brower and type the IP address of the DMI card’s Dante module into the browser. In the example below, the IP address of the DMI Card is 169.254.250.129

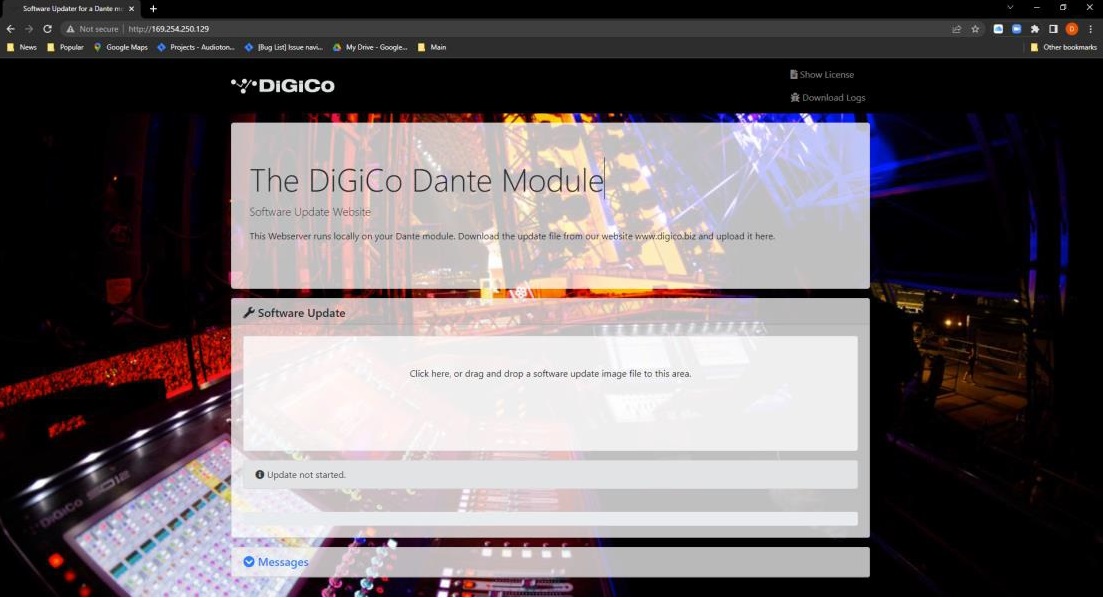

    5. This should open the page below in your browser.
      Dante firmware.jpg
    6. Clicking in the update space will open a file browser so you can select the Update File or drag the firmware file from its location and drop it into the box in the web browser page.
    7. The firmware update should begin automatically.
    8. Please note there is no update complete notice. Once the screen reverts to the view above, the process is complete.
      If the screen does not revert to the view above but just continues to display a “Restarting” message, please wait for 5 minutes and close the application. The update is likely to have completed successfully anyway.
    9. The process will need to be repeated for each of these devices on the Dante network.
