The following notes are instructions for fitting the Waves option to the Q3 console
FITTING WAVES ® OPTION
Important Note: These instructions are a guide to fitting the Waves option to this mixer. This
option is normally supplied factory fitted and is not considered a user installed option. This note is
for the use of factory approved technicians only. The USB key included in the kit includes these
install instructions and the operation manual.
Preparations
Read the instructions carefully before starting, and leave yourself time to perform the work.
You will need to have the following tools to hand:
- 2mm Hexagonal driver (Allen Key) stubby (less than 40mm) – normally supplied with the Q3
- Pozi or Philips screwdriver no 0
- Pozi-screwdriver 1 pt
- 2.0 Hexagonal driver (Allen Key)
- Soft material (e.g. bubble wrap) for resting panels flat on
You should also have:
1) Authorisations for Waves Multirack, Superack, Waves Studio or a PC driver for recording
at least, as obtained from Waves (http://www.waveslive.com/html/soundgrid-fordigico.aspx) This will be required to use the installation.
2) To fully test Waves functionality, you will also require a compatible PC to run the Waves
software required, also usually a Soundgrid Server, a Waves approved 1GB Network
switch and 3 CAT5e/CAT6 network cables. Details of approved switches and appropriate
Cables can be found at http://www.waveslive.com/html/soundgrid-switches.aspx
Ensure you have taken appropriate anti-static precautions
Avoid working in areas with synthetic floor coverings or carpet, especially polypropylene material, as opposed to natural materials such as solid wood or wool. Ideally work at a proper workbench with ESD safe features, such as a metal frame. Before work, try to discharge yourself into a mains earth fitment, water pipe etc.
This is important as parts of the equipment are static sensitive and even if any damage is not immediately obvious, so called “latent damage” can occur, where a device may be partially degraded yet continue to perform its intended function. However, the operating life of the device may be reduced dramatically, leading to premature failure.
If you are unsure about any part of the procedure, seek advice before proceeding.
Before you start, shut down the console, switch it off and remove the power leads.

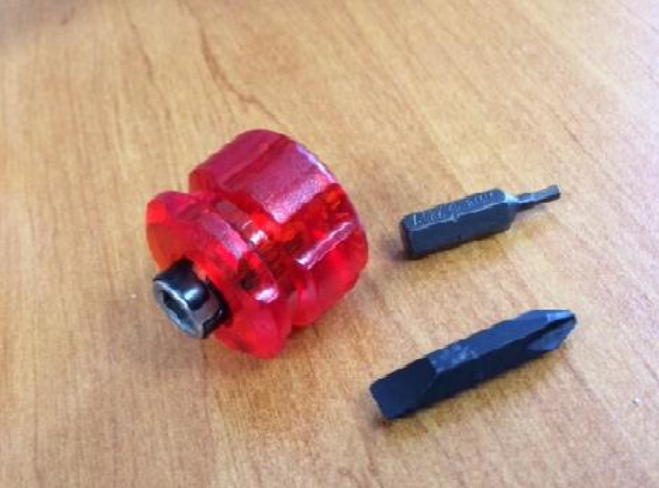

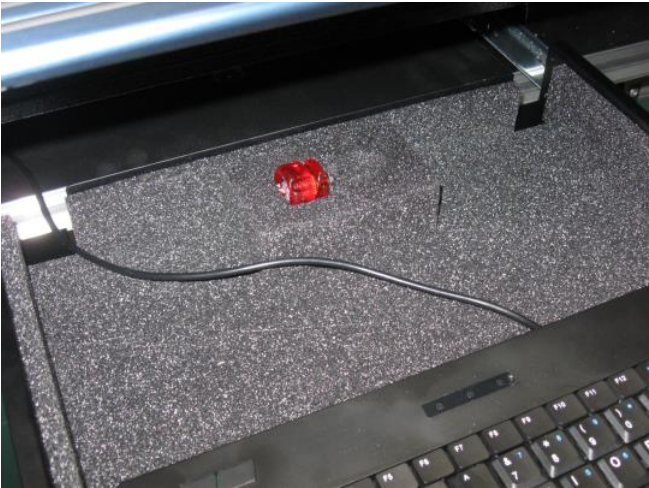

Locate and remove the stubby driver and bits supplied with the mixer in the keyboard drawer.
Procedure
Accessing the Console Interior
Remove screws from left and middle display panels, take out screws from master and the right sections only if required.

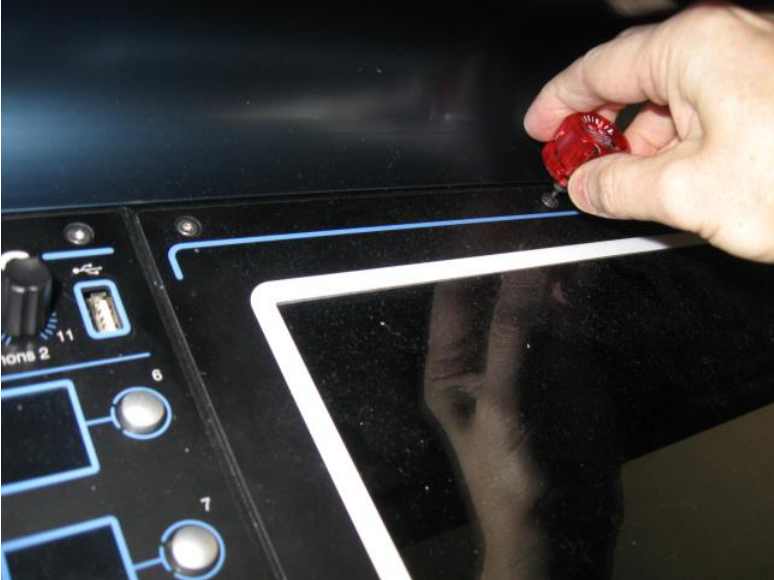

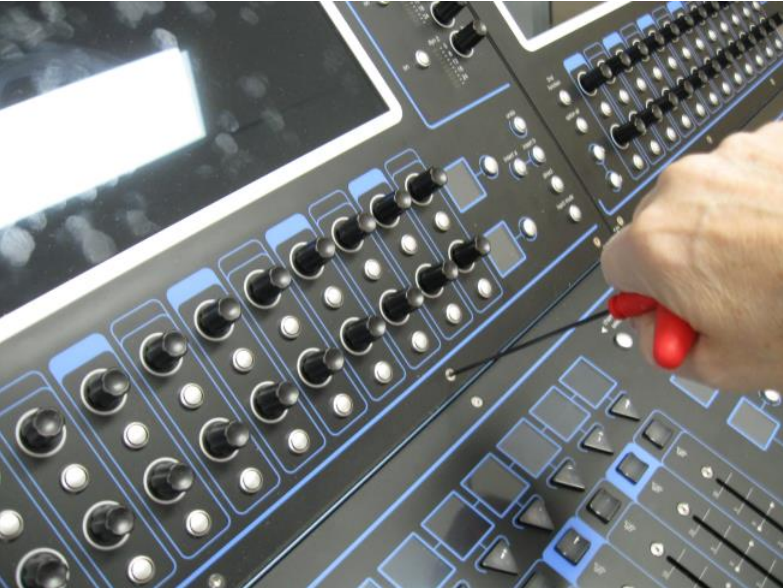

Remove the top screws from the upper panels using the stubby 2mm hex driver located in the keyboard drawer. For the bottom screws, use a regular 2mm hex driver.

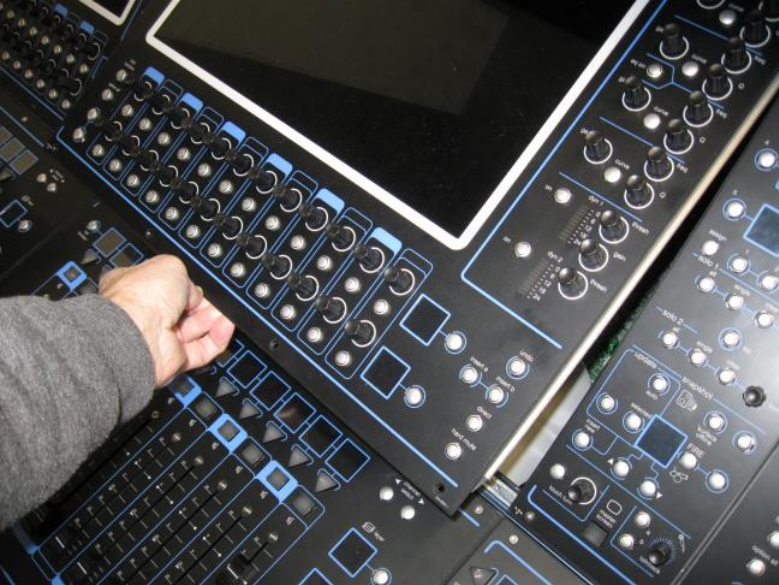

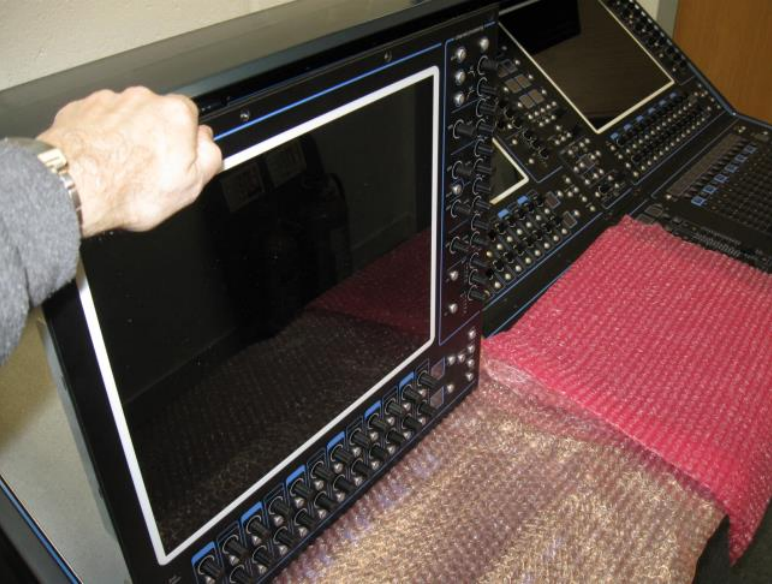

Lift the upper panels out from the lower edge and tip forward, resting the upper panel on the chassis or soft material covering the fader panel

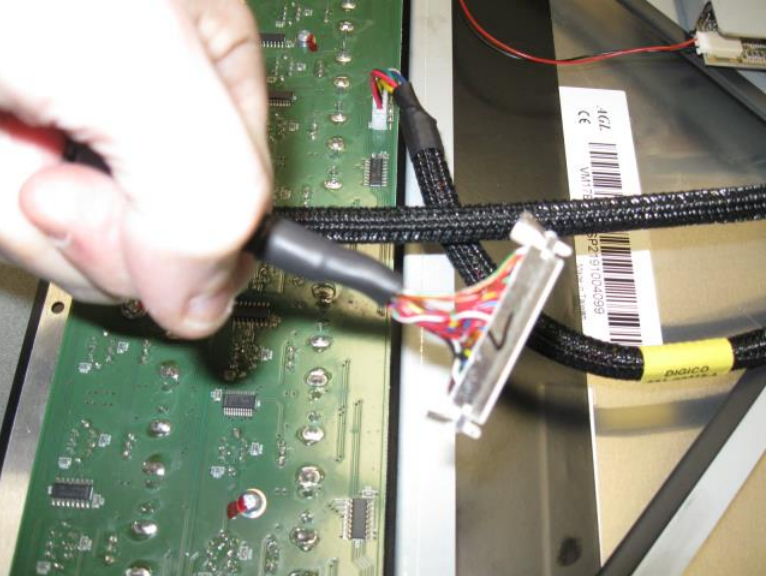

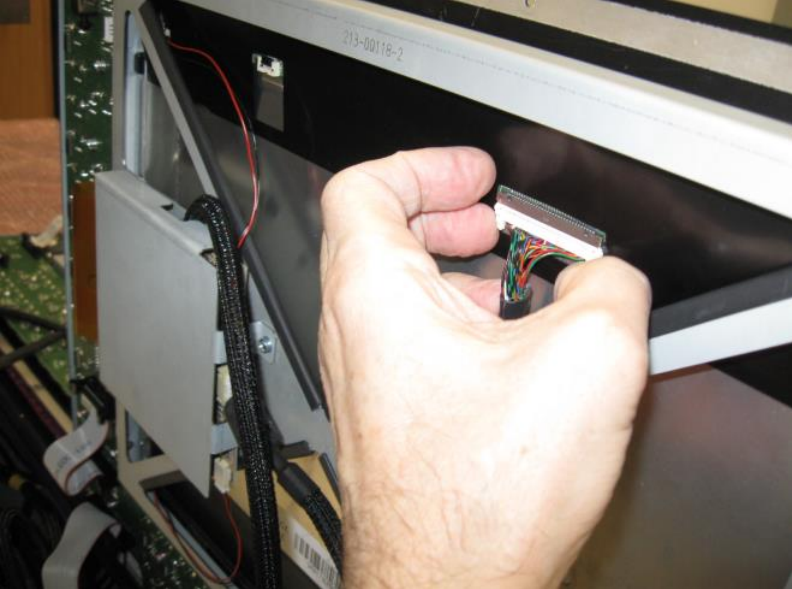

Lay the panel flat across the fader panel on soft material. If required, unplug the display drive cable from the rear of the screen by squeezing the two ends of the connector to release it. Note that the plugs are labeled L, M, and R for the respective screens.

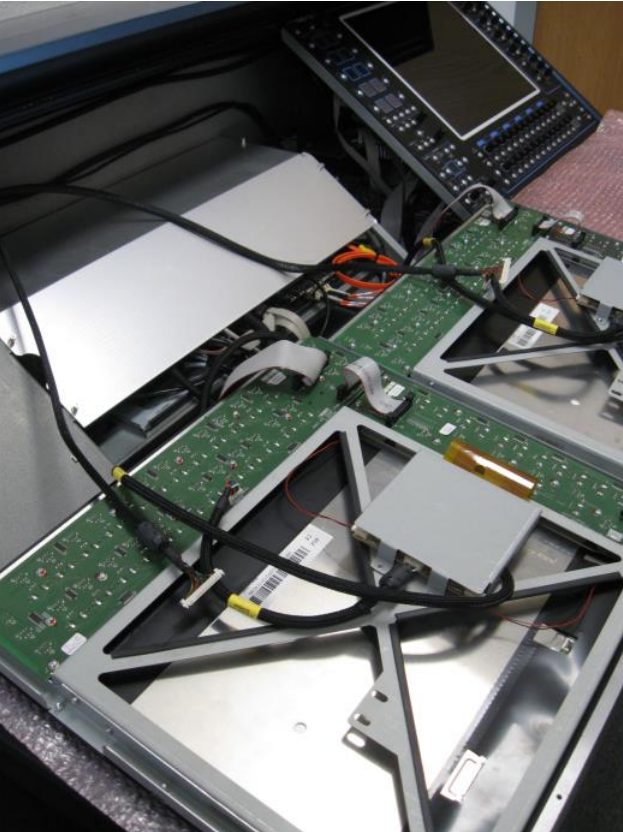

Lay the upper panels flat on the fader panels but do not remove the master control section panel. The right hand panel is also not removed to fit the Waves option.

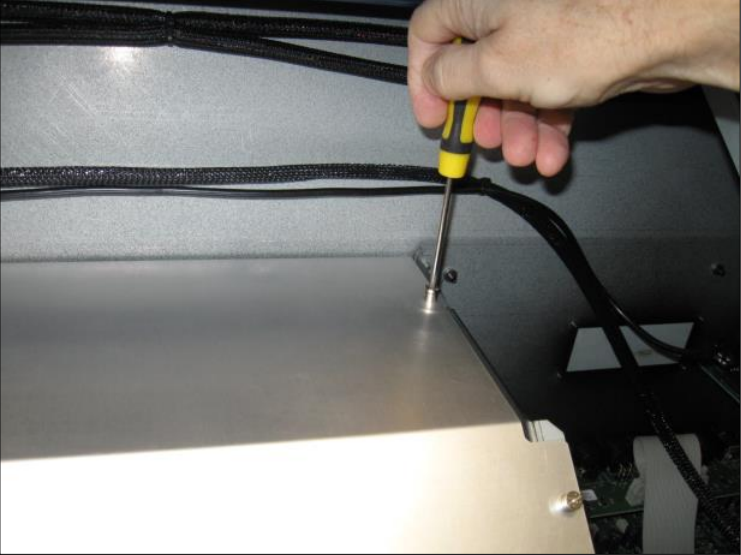

See the engine and computer cover. This is held with 6 captive 0pt Pozi screws (or use a small flat blade). Release all 6 screws, remove the cover from within the mixer and see the engine exposed below.

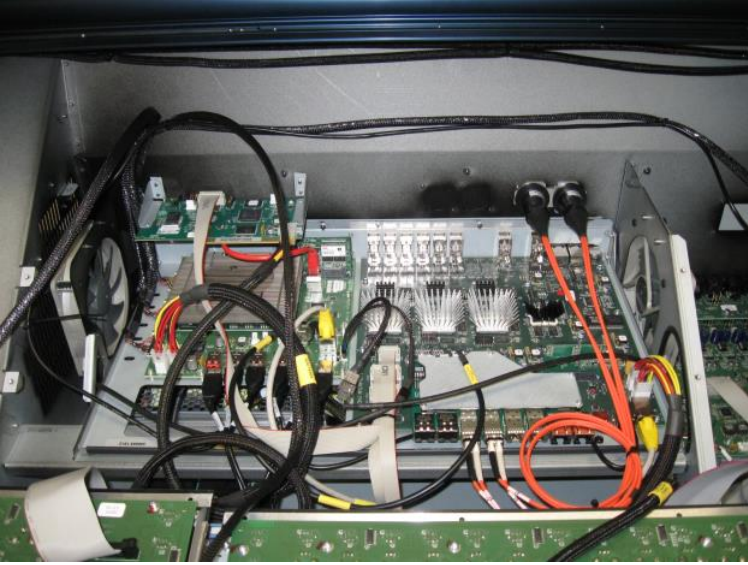

The interior is now accessible for required work.
Waves Option PCB Module

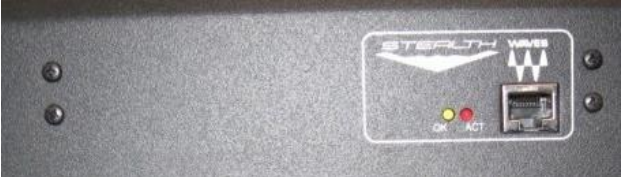

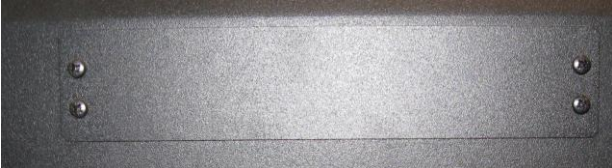

- Remove the blanking plate fitted above the console power supplies on the rear of the console
- Note the screws go into nuts on the inside of the console.

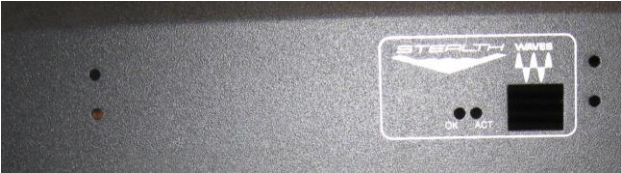

- Within the mixer fit the Waves module to the rear panel, re-using the bolts from the blank.

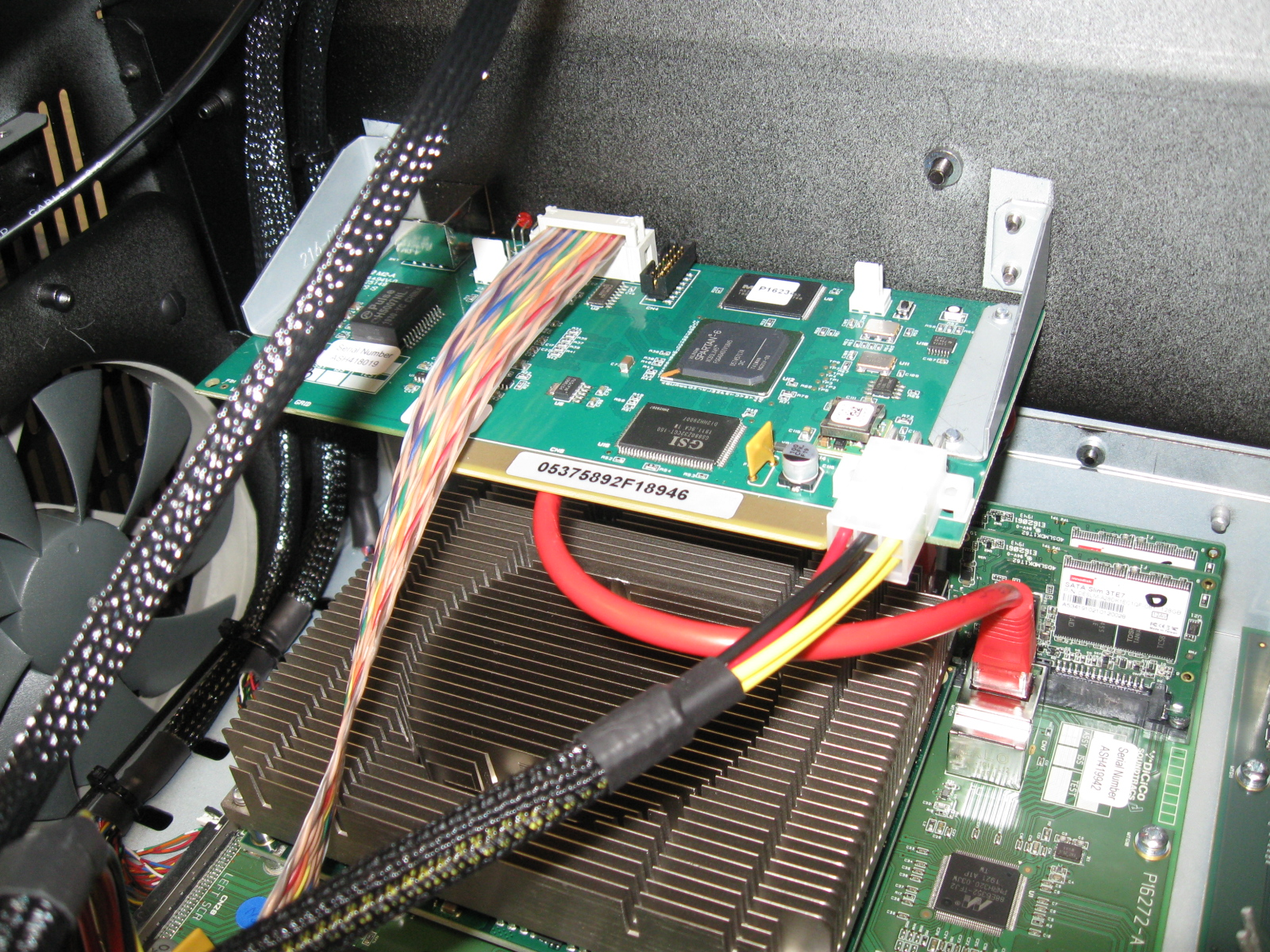

- See picture below showing the interior view of the installed Module PCB
-
Take a note of the 12 character module Waves serial number PCB whilst this is being installed. This will be required for activating your Waves license
Waves Option Cables

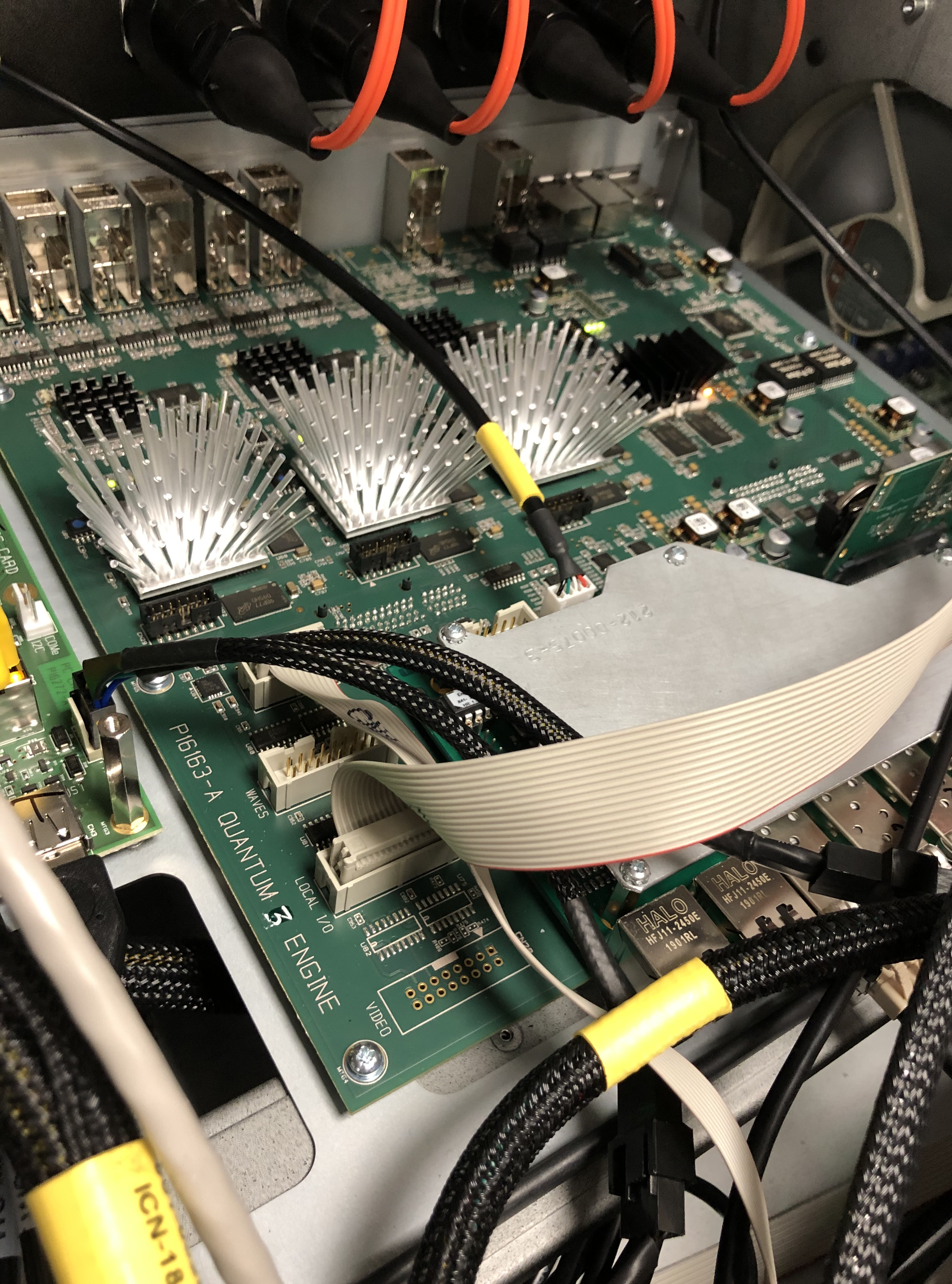

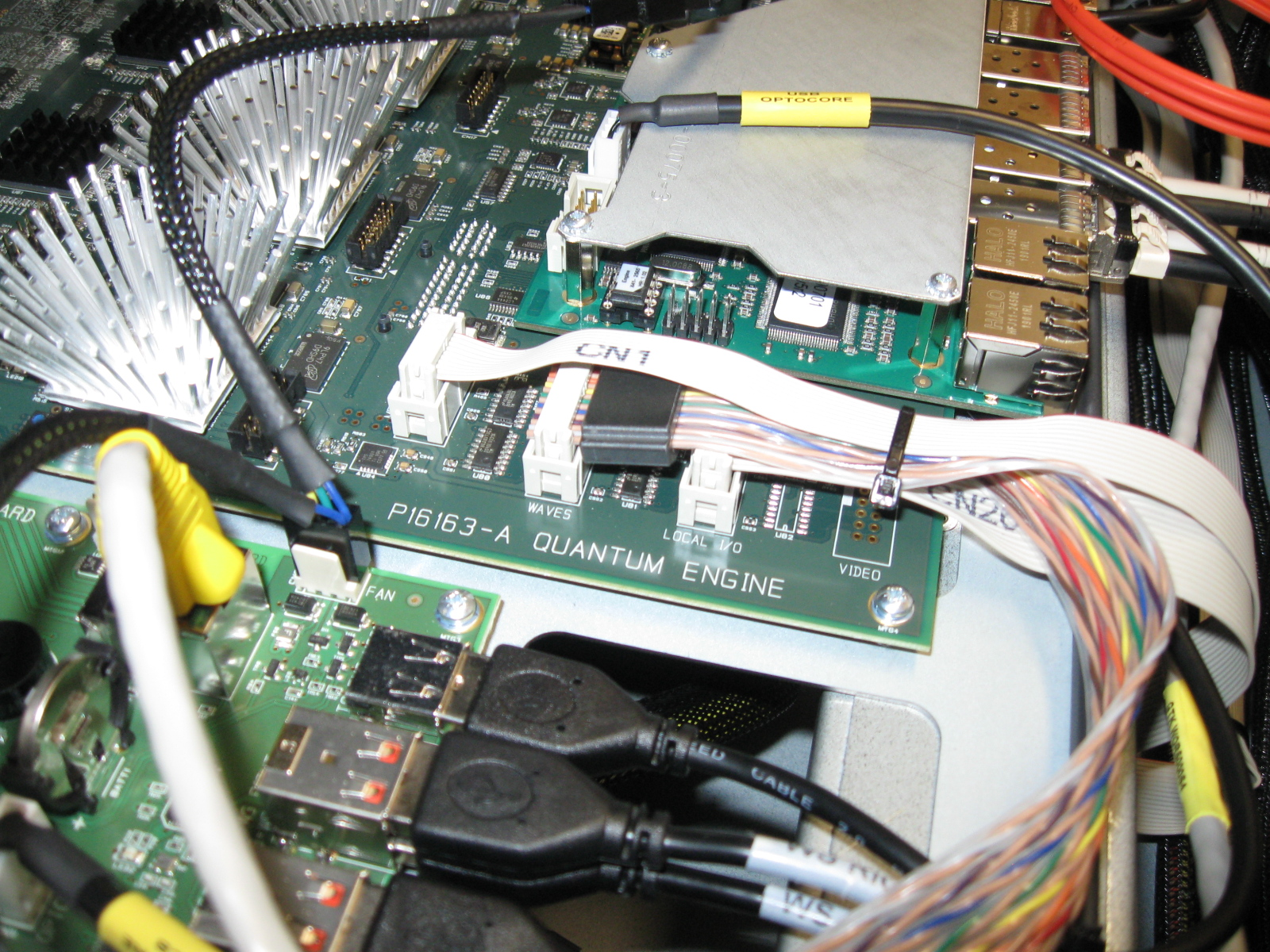

- Locate the ribbon cable connection to Engine connector CN8 labelled Waves.
- If the Waves option was not installed before but this cable was fitted and tied off, it should be removed and replaced with the new cable included with the kit.
- Cut the Ty-Wrap at the engine PCB end to release the cables leading to the PCB, if required.
- Fit the "twist/flat" ribbon. Not the pre-fitted ferrite goes at the engine end.
- Replace the cable tie at the engine end.
- Locate the power cable in the chassis which is pre-fitted and tied off adjacent to the Waves module. Cut the Ty-Wrap and release the cable
- Connect both the other ends of the 2 cables to their mating connectors on the Waves PCB.
The Waves hardware installation is now complete
Test the mixer functions
On completion of work connect the mixer to power and perform a functional test to confirm all
screens and controls function correctly, prior to fixing covers and panels.
On completion of test, shut down and the switch off power
Reassemble the mixer
- Lift the upper left and middle panels and lay flat across the faders again.
- Replace the engine cover plate - This is critical for the correct operation and cooling of the unit and must not be omitted.
- Ensure no cables are trapped by this and all 6 screws are correctly done up.
- Refit and screw down all control and fader panels.

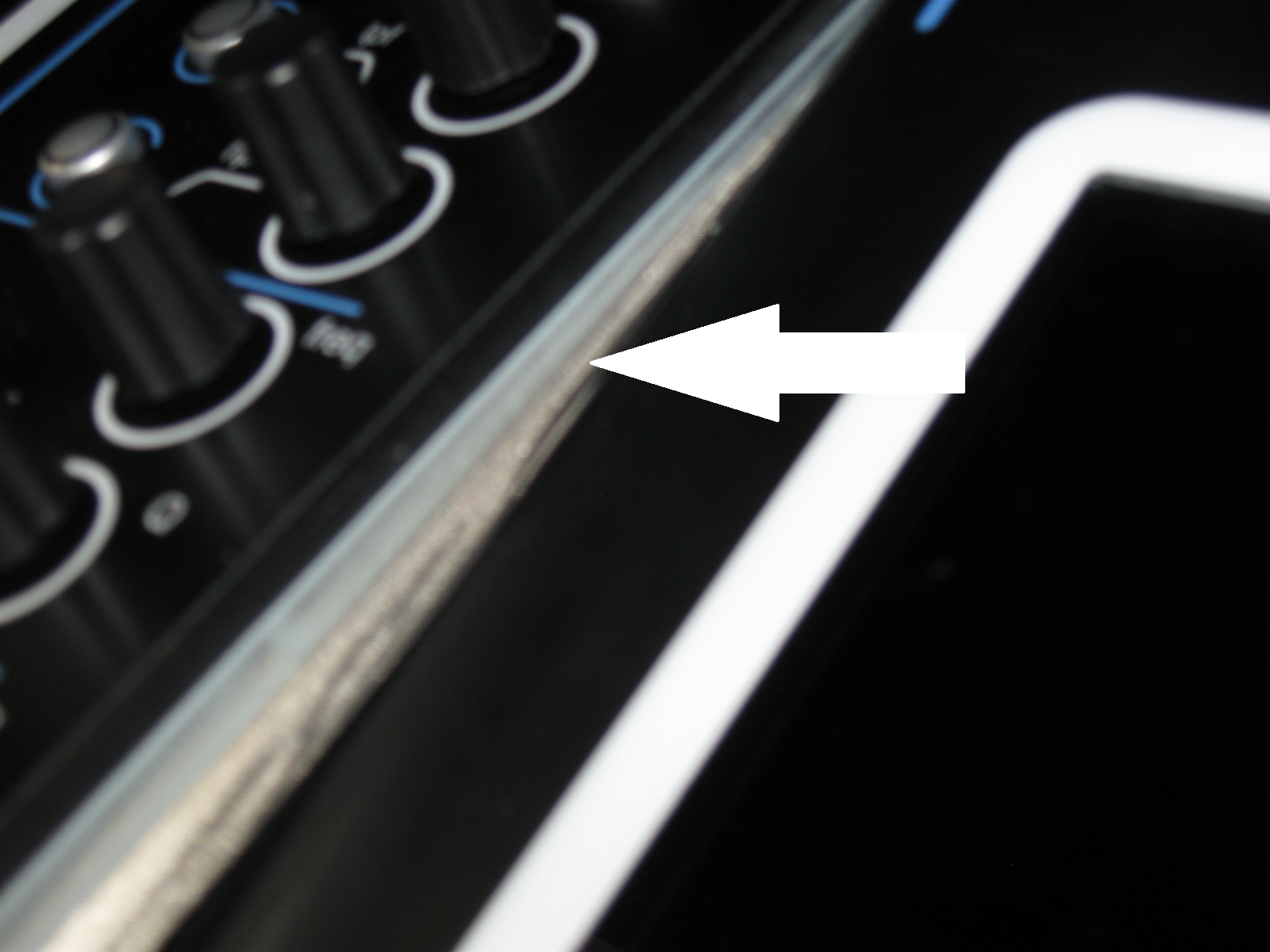

Note how the upper panels have a flexible RF gasket on the right edge. Ensure this is in place and not removed. Assembling panels from right to left is the correct methos to get these in, finally sliding the leftmost panel edge without a gasket into the chassis.
Software Setup Notes
The Waves I/O port will appear as an option and can be added in the Audio I/O page.
The option will also activate external Waves control integration features allowing the Waves system to synchronise features such as snapshot firing and the session load and save, via Ethernet
Q3 supports Waves only on a separate external control computer. Legacy internal Waves operation is not supported in any form.
Connect both the Waves port and one of the console network ports to the Waves compatible network switch.
Ensure the Waves computer is on the current version compatible with the mixer version installed on the mixer. Refer to your Waves Central account to download and install this, following instructions from Waves.
The Waves port will appear as "Digico I/O" in the Waves inventory. Refer to Waves instructions for the relevant Waves software for operation of the integration features.
If required the PC waves audio driver can be downloaded from Wave Central once an account has been created. This can be created at no initial cost by using the serial number from the Wave module PCB above.
