DMI Dante 64@96 Summit HC Firmware 4.0.20 (4.0.10.3) Update Instructions

To update the DMI-DANTE64@96 card of the Summit variation (green PCB) to 4.0.20 please follow the instructions on the Audinate website:



How to update your Dante devices | Dante



This firmware version adds compatibility for Control of the DiGiCo DQ Rack when using Quantum Software V1454+.

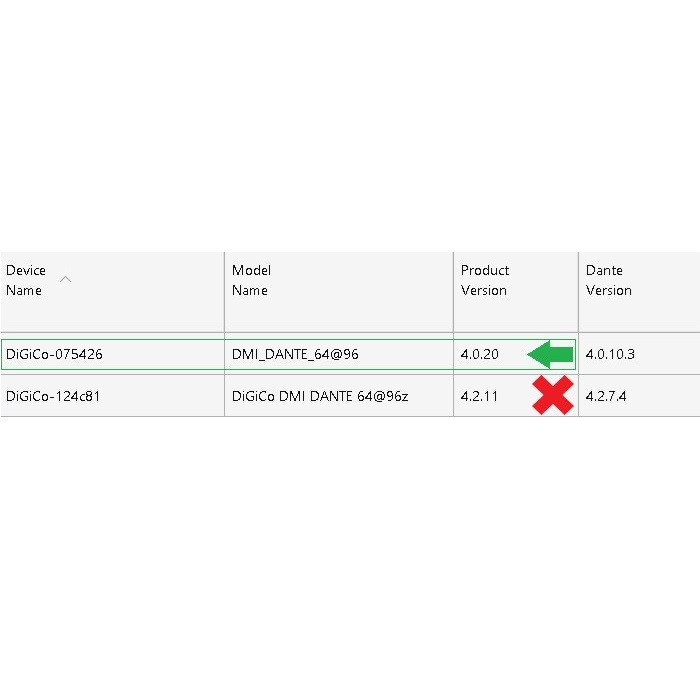

Not applicable for later cards with the IP Zynq HC. The Zynq cards can be identified by the 'z' suffix from within Dante Controller or by visually checking the Dante daughter board on the DMI card. The material for the PCB is black in colour.

Dante Firmware Zynq & Summit.jpg



Both A168D & A164D require a firmware update to be compatible with this code. Please see TN515.

Note that this firmware is NOT compatible for Console Versions 1280 or earlier for Control of A168D or A164 IO Boxes. Audio is unaffected.

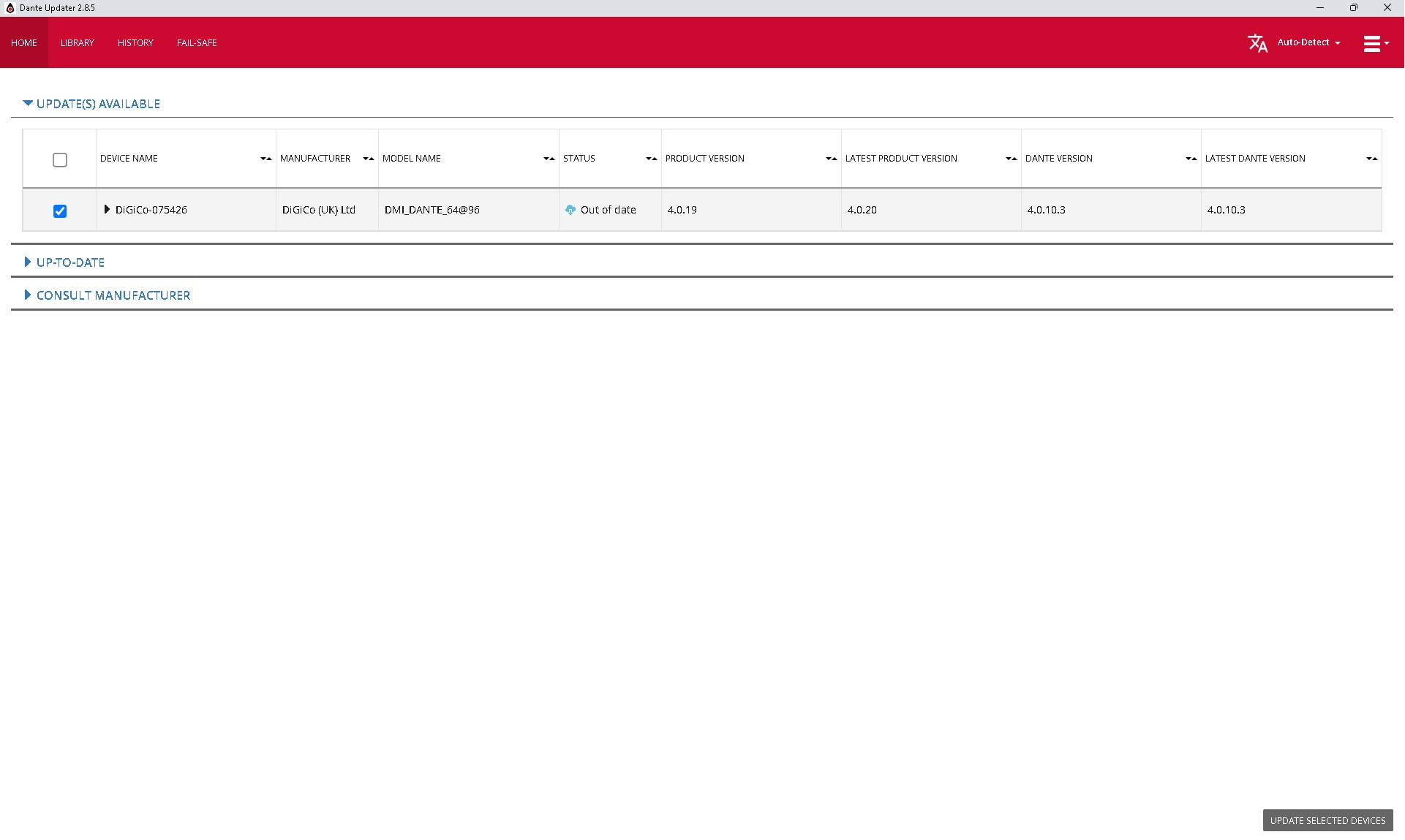

The whole updating process is done via Dante Controller and the file is made available by Audinate.

Dante Firmware Updater Summit.jpg
